Worktable Fixed Type CNC EDM Machine

Product Description

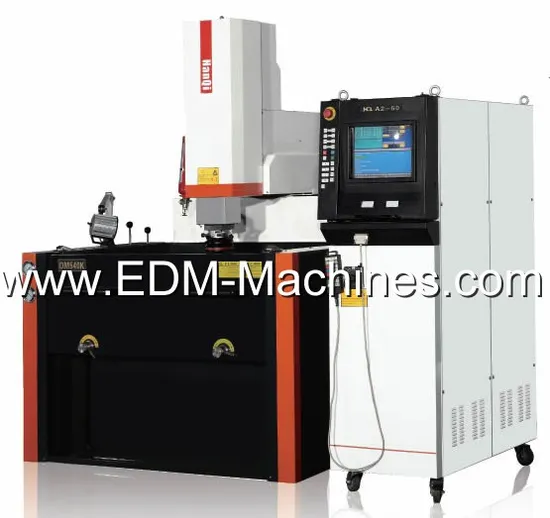

CNC Die EDM Sinker Machine DM850K
Precision EDM Machine DM850K as the star CNC EDM Machine in China.
High rigidly machine casting
00 grade precision marble worktable
Big power Panasonic servo motor
Hiwin linear guideway and ball screw
Schneider electrical
Worktable fixed type construction
Mirror grade filter system
Sodick EDM technology system
The system with a lot advanced technology for example automatic process function, automatic positioning function, automatic clean arc and short circuit. It includes tool raise high-speed adaptive system, discharge pulse detection system and energy pulse control system to short machining time and get best precision
CNC Die EDM Sinker Machine DM850K Specification
Machine Size 2280*2470*2690mm
Machine Weight 5200kg
Machine Power 9kw
Worktable Size 1150*600mm
Loading 3000kg
Machining area Size 1800*1100*570mm
Distance from spindle to table 900mm
X,Y,Y Travel 800*500*400mm
Max Current 50A(75,100A)
Max electrode weight 180kg
Max speed ≥500 mm²min
Drive type AC servo direct drive
Min electrode wear rate 0.05%
Roughness Ra≤0.1um
Min drive unit 1um
Coordinate Quantity 60
Display 15-inch LCD screen,Touch screen
Each Axis Compensation Steps error compensation, backlash compensation for each axis
Each axis Resolution 0.4um
Interpolation Method lines, arcs, spirals, etc
Processing Discharge Conditions Registration function 1000 conditions (C000-C999)
Input Range + 9999.999 ~ -9999.999
Offset Function 1000pcs offset H000-H999
CNC Die EDM Sinker Machine DM850K Parts List
Parts Original
XYZ guideway Taiwan Hiwin linear guideway
XYZ Ball screw Taiwan Hiwin ball screw
X,Y,Z motor Panasonic AC servo motor and driver
Main board Taiwan AAEON Industrial computer
Capacitance Japan Kingbox
Circuit breaker Schneider
LCD Taiwan AUO Industrial LCD
Power Taiwan MeadWell
Contactor Taiwan T-Verter
Air switch and limit switch Omron
Communication wire and cable Japan Hitachi
Connector Nanshi
IC chip NXP/ATMEL/ALTERA
Diodes, transistors America Vishay
Three rectifier bridge Japan SANTEX
Emergency stop Japan IDEC
Intermediate relay Japan IDEC IZUMI
Optocoupler Japan Toshiba
Volt-Ammeter Japan YOKOWAGA

---
