Tabber and Stringer Machine, Is It Easy to Operate? -Solar Panel Making Machine Supplier

Product Description

Function

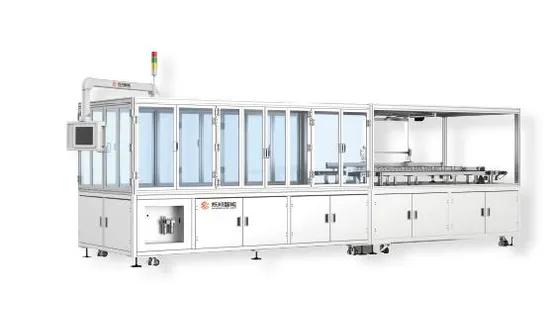

SS-1500 Stringer adopts IR soldering method, servo motor driving, mechanical positioning and Industrial CCD detection for defective solar cell excluding automatically. The soldering effect, such as cell spacing, cell numbers of single string, soldering temperatures and etc, can be adjusted according to requirements. SS 1500 can be integrated with automatic layup machine to achieve the composing and locating of solar cell strings on tempered glass.
Equipment Advance Applicable for front side and back side soldering of the cell, Qualified soldering effect, which approves soldering pulling testing higher than 1N/mm on cell surface (0.6*0.25mm ribbon, 180 degree pulling angle, and except HJT cell) Exchange time less than 120mins for changing different bus-bar number(9BB&12BB), including 30-60mins for changing tools and 30-60mins for tuning and calibrating. Exchange time less than 30mins for different cell sizes (whole cell, half cell, third cell and quarter cell) while bus-bar number fixed. Two Stingers requires only one operator. Dual Solar cell unloading basket to avoid working interruption. Ribbon extruding in advance before soldering. Pre-heating before soldering to avoid cell deformation efficiently Applicable for Solar cells thicker than 160um, max thickness 300um. Adjustable for Ribbon soldering spacing. Adjustable for Ribbon soldering length. Touchable integrated PC system can support remote assistance, we can provide online technical support for after-sales issues. Can be integrated with other Solar equipment conveniently. Remote assistance by Internet, the factory provides the network connection. Adjustable for Solar cell spacing 0-35mm, normally 1.5-5mm. No pre-heating required for Ribbon before soldering. No specialized engineer required for maintenance, but engineers must be trained and qualified. Solar cell soldering numbers per string can be set by PC. Equipment Hardware
1. Machine body The Solar cell district and Soldering district are totally enclosed on machine body. The solar string unloading basket can be integrated with automatic layup machine.
The equipment adopts PLC control mode, with servo motor driving and multiply alarm system for safety guarding.
2.Rotary cell basket group Servo motor driving + Liner Guide rail support + Ball screw transmission. No friction during cell loading and unloading process, to reduce cell breakage rate Stratified Cell blowing structure to reduce cell breakage rate Alarm notify when cell basket is empty 3. High-resolution industrial CCD camera High precision mechanical positioning
4. Ribbon handling structure Adjunctive ribbon downwards structure DC gear motor driving Soldering flux immersing structure for Ribbon
5. Soldering processing structure IR soldering method, and Soldering controlled by step motor driving Soldering temperature adjustable Solar cell pre-heating
6. Unloading structure Translation movement driven by servo motor Lifting movement controlled by Guide Rod Air Cylinder Solar cell rotary & overturn function Solar string belt transmission mechanism Vacuum control alarm
7. Software control system Specialized software for conveniently edit and modification Friendly Human-machine interface for easy operation and control Adjustable for edit and modification of soldering orbit according to requirement Centralized Parameters can be set by keyboard through software window. Main parameters can be set and saved by software directly Exchange between Automatic and Manual mode for convenient debugging Soldering counting function Error Alarm function
8. Technical Parameters

Model		SS-1500
Working Efficiency		1200-1300cell/hour (In condition of 158.75 whole cell welding and cell spacing<2mm,average speed of continuous welding is 1200-1300 pcs/hour)
Soldering Head		1 PCS
Ribbon Soldering Welding Accuracy		≤±0.2mm
Breakage Rate	160-180μm	≤0.2%(A class)
	180μm and Over	≤0.1%(A class)
Solar Cell Size Available		158 166 Full Cell and 1/2,1/3 and 1/4 cell; 182 210 1/2,1/3 and 1/4 cell; (1-12 cell per string)
Bus Bar QTY Available		5BB-12BB(Requires to change Soldering Head)
Solar Cell Thickness Available		0.16mm-0.3mm
Ribbon Available	Width	0.6-0.9mm
	Thickness	0.2-0.3mm
Solar String Available	Cells number/String	Max 12 cell,Max lengthy ≤2000mm(Ribbon length included)
	Stringer Space	10-40mm
	Head/Tail length	5-20mm
	Cell Spacing	Adjustable for solar cell spacing 0-35mm,normally 1.5mm-5mm(Accuracy ±0.2mm)
	Cell Positioning Accuracy	≤±0.1mm
	String Straightness	≤1mm for 10 cells string
	Ribbon Positioning Accuracy	≤±0.3 mm for both sides
