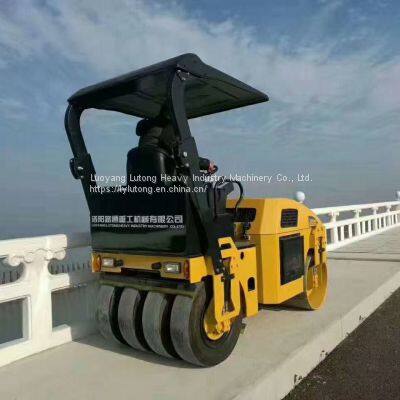

LTC203P is a model of combination vibratory roller with front drum and rear tire developed. It is characterized by combination of vibratory steel drum and static tyre, can implement both vibration compaction and surface rubbing.
Operating mass
| kg
| 3000
|
Static linear load
| N/cm
| 136/180
|
Vibration amplitude
| mm
| 0.5
|
Centrifugal force
| KN
| 30
|
Vibration frequency
| Hz
| 50
|
Travel speed
| Km/h
| 0-12
|
Grade ability
| %
| 32
|
Steering angle
| 。
| ±26
|
Overall dimension
| mm
| 2900*1400*2580
|
Drum diameter
| mm
| 700
|
Drum width
| mm
| 1250
|
Quantity of rear tire
| Pic
| 4
|
Specification of rear tire
|
| 7.50-15
|
Wheelbase
| mm
| 2010
|
Diesel power
| Kw
| 26.5
|
Diesel model
|
| ZN390B
|
Water tank capacity
| L
| 200
|
This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
