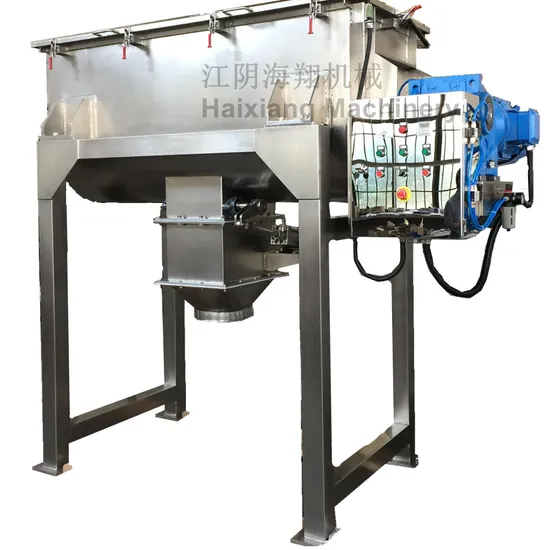

Stainless Steel Food Powder Mixing Machine Ribbon Toner Mixer Horizontal Static Single Shaft Blender

Product Description

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM. Products Description WLDH Horizontal Ribbon Mixer Working Principle & Structure:
WLDH Series Horizontal Ribbon Mixer belongs to low speed rotary machine. The wide ribbon makes the convection of the material to achieve the mixing effect.It consists of container, main shaft, and the drive transmission part. The container is U shape. The machine can be made of Carbon Steel (C model) and Stainless Steel (P model). It can be also equipped with the jacket for the container. It can heat, cool or vacuum in the jacket. The inside pressure of the jacket is less than 0.1 Mpa (The pressure can be customized). Two layers screw type ribbons makes the convection of the material to achieve the mixing effect rapidly. There is a discharging valve in the middle of the container bottom. The drive parts adopt separated devices, that is, the motor is connected with reducer by the strap. Thus, It can save the space and has the overload protection.
Application:
For the big load factor, small work area, this machine is applied to mix the sticky powders or granule with large capacity and stable variety. Therefore, it is widely used in pharmaceutical, foodstuff, chemical, pesticide, plastic, dyestuff industries, etc.
Technical Parameter:

Model	Total volume(Litre)	Mixing Speed(RPM)	Motor Power(KW)	Overall size(mm)	Weight(kg)
WLDH-100	100	62	3	1190*740*770	330
WLDH-300	300	62	5.5	2280*680*880	600
WLDH-500	500	62	7.5	2670*780*1240	900
WLDH-1000	1000	49	11	3140*980*1400	1200
WLDH-1500	1500	49	11	3180*1020*1550	1800
WLDH-2000	2000	33	15	3860*1200*1650	2000
WLDH-3000	3000	33	18.5	4460*1300*1700	2500
WLDH-4000	4000	27	22	4950*1400*2000	3500
WLDH-5000	5000	27	30	5280*1550*2100	4000
WLDH-6000	6000	27	37	5530*1560*2200	4500
WLDH-8000	8000	22	45	5610*1720*2500	5000
WLDH-10000	10000	22	55	5710*1750*2650	6000

Additional configuration:
1.material:all stainless steel/contact parts stainless steel/carbon steel or other.
2.discharge valve:pneumatic flap valve/butterfly valve/segmented ball valve or other.
3.electric parts:ABB,Siemens,CHNT or other. 4. frequency converter:Delta,Siemens,Mitsubishi or other 5.PLC,HMI:Siemens or other. 6.Seal:packing seal,packing seal and pneumatic seal,mechanucal seal or other 7.motor: WNM,Siemens,ABB,Sumitomo or other. 8.reducer:cycloidal reducer,surface-hardening gear reducer or other. 9.bearing:HRB,NSK,SFK or other. 10.spraying system 11.heavy duty type ( loading your material into the mixer first and then start the mixer). 12.Platform: we build the platform for you or we design it and you build it locally. 13.Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so on.
Customizing according to client's specific requirement FAQ 1.what's your raw material?do you know the density of your raw material? for example flour,520g/L
2.what capcity do you require for example 300kg/batch,500L/batch,500lbs/batch 3.what's your industry voltage in your factory?we only accept 3 phase power sullpy. foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize. 4.what's the material of the mixer do you require? for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel 316,Titanium material. 5.is there any other requires for the mixer? for example heating and cooling jacket,spray system,CIP system or other. Details Images Recommend Products micro pulverizer grind material from 10mm to 40-320mesh.no screen design Vacuum Conveyor lift material from ground to the machine. table type universal grinder grind material from 10mm to 12-120mesh. Packing and Shipping Company Profile

---
