| US$3,300.00-3,500.00 | 1 Piece (MOQ) |

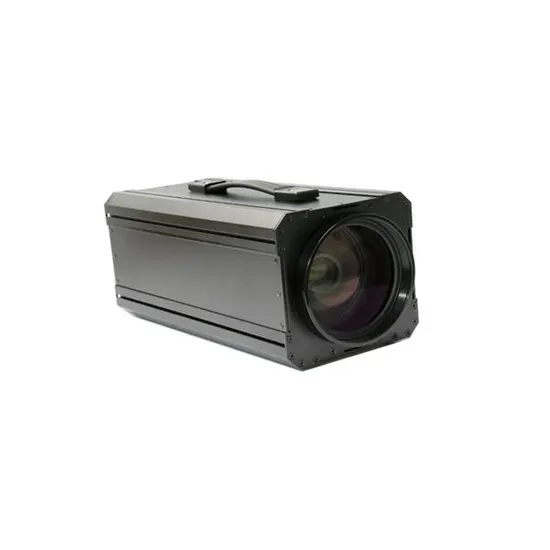

| Technical Parameter of HD Motorized Zoom Lens | |||
| Model No.: 02-010-002 | |||
| No. | Item | Specification | |
| 1 | Imager size | 1/1.8"(9mm) | |
| 2 | Pixel | 3MP | |
| 3 | Focal Length | 26~1460mm | |
| 4 | Interface | C-Mount | |
| 5 | FNO.(Max) | F6.5 | |
| 6 | FOV(16:9) (DxHxV) | 1/1.8'' | W:20.4°×17.78°×10.0° T:0.36°×0.314°×0.176° |
| 7 | RFL(in air) | 17.3mm | |
| 8 | Control Mode | Focus | Electrical/Motorized |
| Zoom | Electrical/Motorized | ||
| Iris | DC automatic | ||
| 9 | Distortion Rate | 1/1.8'' | W:-0.8%@y=4.5mm T:0.6%@y=4.5mm |
| 10 | Focus range | 5m~∞ | |
| 11 | Filter size | M114×P0.75 | |
| 12 | Dimension(WxHxL) | 148×141×356mm | |
| 13 | Weight | 5.7Kg | |
| 14 | Working Temperature | -30~+60ºC | |
| 15 | Characteristics | Antifog, Day night. | |
