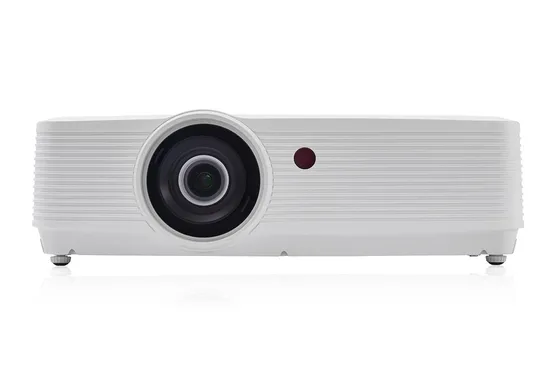

Home Cinema 1080P Projector with 3700 Lumen

Product Description

Outstanding Performance in a Compact Body
High Brightness, Contrast ratio
Brightness can reach 3300 lumens, This series is completely equipped with 15000:1 ratio. Even in standard daylight classroom & meeting rooms, presentation brightness is guaranteed to deliver vivid moving colors.
Extra Long life Lamp
High quality long life lamps. These series delivers well engineered lamp type that could last up to 10,000 hours.Effectively reduce extra maintenance cost on lamp replacements.
Super-Fast Start Up and shut down
Zero second Flash start & shut mode kills waiting time and more business matters.
Power-trip protection safety feature
The series comes with short circuit protection feature that anticipate unexpected power cut. Given this ability, it protects expensive components boards and lamp safety.
Vertical Keystone correction
The Keystone correction feature allow image to merge to scale onto any projector screen.
Multiple inputs feature
1 * sets HDMI, 1* sets VGA inputs, VIDEO input.
Quick snap lamp & Filter replacement design
Design with ceiling installation in mind, projector Users without much training could replace the lamp or filter ina snap. Maintenance can be more regular and with ease by any facility officers.
Compatibility Support
Projectors is built to mix with its class of equipment. It support PJLINK, CRESTRON-ROOMVIEW, and AMX-
DISCOVERY via internet command systems. Its blends into system and work seamlessly with other brands projectors.
ESD Anti Dusting feature
Equipped with high efficient electrostatic dusting functions within the projector, it keeps the LCDs and lenses dust free from any environment.

Bitmap SMX PROJECTOR PRICE LIST
	Model#	MX-L355X
Brightness
	Brightness (Marketing) ( Ansi Lumens )	3700
	Light source	Lamp: 225W
Overall Spec
Panel	Display Panel	3x0.63"
	Display Technology	Liquid Crystal Display
	Native Resolution	XGA (1024x768)
Lamp	Lamp Consumption(W)	225W Infinity(Lamp)
	Lamp Lifetime(H)	10000H(Normal) /20000H(ECO)
Projection Lens	Zoom/Focus	Manual
	Throw Ratio	70"@2.1m; 1.48~1.78:1
	F	F:1.6~1.76
	f	f=19.158~23.018mm
	Zoom Ratio	1.2x optics
	Screen size	0.888~10.937m(30"~300")
	Lens Shift V	N/A
	Lens Shift H	N/A
CR	Contrast Ratio(Min)	15000:1 (w/IRIS)
Noise	Noise(dB)@1m	ECO: 30dB Normal: 37dB
Uniformity	Uniformity(Actual Min) -JISX6911	80%
AR	Aspect Ratio	4:3 (Standard)/16:9(Compatible)
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4	*2
	Video	*1
	Audio in (mini jack,3.5mm)	*1
	Audio in(L/R) --RCA	*1
	USB-A 2.0	*1
	USB-B	*1(Display)
	RJ45	*1(Display)
	YCbCr/Component	N/A
	S-Video	N/A
Output	VGA	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1(for up-grade)
	Other Interface	N/A
General Spec
Audio	Speaker	1*10W
Power Consumption	Power Requeirements	100~240V@ 50/60Hz
	Power consumption (W)	310
	Power Consumption (ECO)	217
	ECO Standby Mode Power Consumption	<0.5W
	Network standby Power Consumption	<2W
Temp.&Humidity	Operating Temp.	0ºC~40ºC(35~ ECO)
	Store Temp.	-10ºC~~55ºC
	Oparating Humidity	20%~85%
	Storage Humidity	10%~85%
Mechanical Design	Security bar	Yes
	Password protections	Yes
	Control Panel Lock	Yes
	Kenginston Lock	Yes
	Ventilation (In/Ex)	Side/Side
	Lamp access	Top
	Filter access	Side
	Dust filter	ESD filter
Other Functions
Keystone	Keystone Correction	V: ±30° (auto+manual) H: ±15° (manual) Pincushion/Barrel Correction Corner Keystone
OSD	Languages	26 languages: English, German, French, Italian,Spanish, Polish, Swedish, Dutch ,Portugese,Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish,Norwegian, Danish, Indonesian, Hungarian,Czech, Kazak,Vietnamese,Thai, Farsi
Scanning Frequency	H-Synch Range	15~100KHz
	V-Synch Range	24~85Hz
SW setting	Auto Setup	INPUT SEARCH,AUTO PC, AUTO Keystone
	Audio muting(Muting)	Yes
	Suspend	Yes(5miniutes no singnal as default)
	Picture mode	Dynamic,Standard,Cinema, Blackboard,Colorboard
	Lamp mode	NORMAL,ECO
	Filter Cleaning Cycle	100/200/300 hours
	Cooling time	0S,60s,90s
	Closed caption	Yes
	High altitude	Yes(1400~2700m)
	Signal Power On	Yes
	Turn on countdown	Customized-(5S, 10S, 30S..)
	Auto Ceiling	Yes
	D-Zoom	1~33
	Others
Dimension&Weight
	MAX Dimensions (WxHxD mm)	345*261*100
	Net. Weight (KG)	~3.26
	Packaging Box Dimensions (WxHxD mm)	442*368*195
	Gross. Weight (KG)	4.7
Accessory
	Standard Accessaries	Power cord, VGA cable, Remote control

---
