530ton Injection Molding Machine, Stable Quality, Competitive Cost, Save Energy, High Quality, Reasonable Price, New, 2000 Grams, Big Machine

Product Description

530ton Plastic Injection Molding Machine (Model: ZX-530)

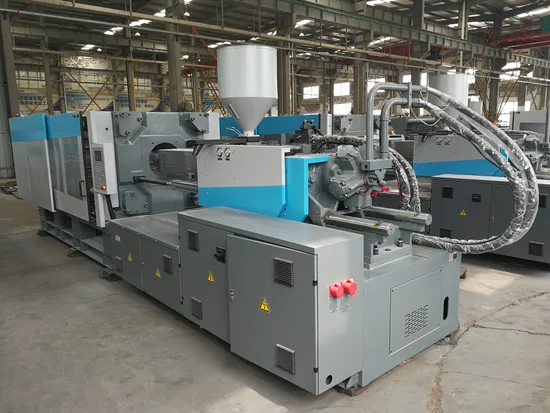

1,Photo of Plastic Injection Molding Machine

2, Technical Parameter of Plastic Injection Molding Machine

ZX-530	Injection Unit Date		A	B	C
	Screw diameter	mm	80	85	90
	Screw L/D ratio	/	22.3	21	19.8
	Theoretical shot volume	cm3	2136	2412	2704
	Shot weight(PS)	g	1965	2219	2487
	Injection rate	g/s	425	480	538
	Max.screw speed	rpm	140
	Clamping Unit
	Clamping force	KN	5300
	Toggle stroke	mm	800
	Space bettween tie bars	mm	830x830
	Min.mold thickness	mm	330
	Max.mold thickness	mm	800
	Hydraulic ejection stroke	mm	210
	Hydraulic ejection force	KN	126
	Others
	Hydraulic system pressure	Mpa	17.5
	Pump motor	kw	56.5
	Heating capacity	kw	34.9
	Oil tank capacity	L	1000
	Machine dimensions	m	9.1x2.1x2.5
	Machine weight	Ton	19.7

3, Platen Dimension of Plastic Injection Molding Machine
4, Dimension of Plastic Injection Molding Machine
5, Technical Characteristics of Plastic Injection Molding Machine
6, Manufacturer of Plastic Injection Molding Machine
7, Contact Information
Contact Person: Mr. Tony
Mobile : +86 13656841356
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Tel: +86 574 87082687
Production: plastic injection molding machine
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
