| US$3,000.00-50,000.00 | 1 Piece (MOQ) |

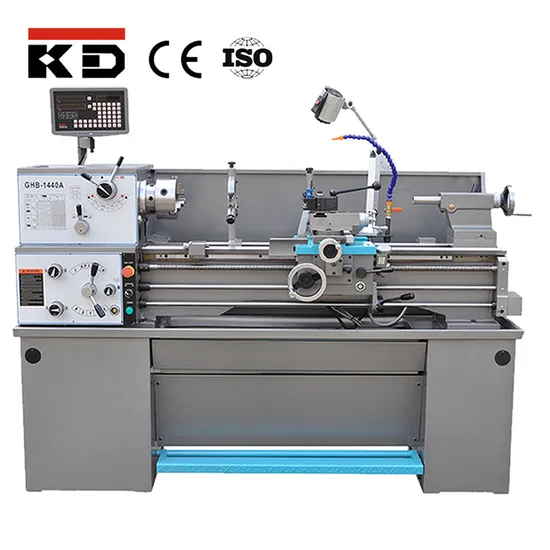

| MODELS | GHB-1340A | GHB-1440A | |
| CAPACITY | |||
| Max. swing over bed | Ф330 mm | Ф360 mm | |
| Max. swing over slide | Ф198 mm | Ф215 mm | |
| Max. swing over gap | Ф476 mm | Ф506 mm | |
| Width of bed | 186 mm | ||
| Distance between two centers | 1000 mm | ||
| SPINDLE | |||
| Spindle bore | Ф38 mm(1-1/2") | ||
| Taper bore of spindle | M.T.NO.5 | ||
| Steps of spindle speed | 8 | ||
| Range of spindle speed | 70-2000 rpm | ||
| Spindle nose | D4 | ||
| FEED | |||
| Range of longitudinal feeds | 0.0018"~0.0374" | ||
| Range of cross feeds | 0.0006"-0.0130" | ||
| THREADING | |||
| Metric pitch threads | 0.45-10 mm/23 | ||
| Whit-worth threads | 3-1/2-80T.P.I./38 | ||
| TAILSTOCK | |||
| Travel of tailstock quill | 95 mm | ||
| Taper bore of tailstock quill | M.T.NO.3 | ||
| OTHERS | |||
| Power of main motor | 2HP(1.5KW), 1PH | ||
| Net weight | 524 kg | 550 kg | |
| Gross weight | 620 kg | 680 kg | |
