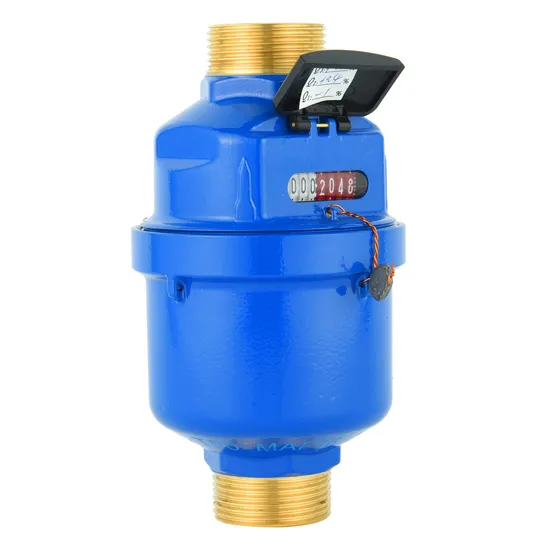

MID Approval Brass Body High Accuracy and Stable Volumetric Piston Water Meter

Product Description

PD-LFC-B is Piston Displacement (Volumetric) water meter with mechanical transmission, liquid sealed register has the sizes from
Dn15 to Dn40 designed by DZS and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European
Standard EN14154 and International Organization of Legal Metrology OIML R49 .
PARAMETERS:

Size (mm)	Dn15	Dn20	Dn25	Dn32	Dn40
L	115 / 165	130 / 190	170/260	260	300
L1	209	234	290/380	384	431
D	G3/4B	G1B	G1-1/4B	G1-1/2B	G2B
d	R1/2	R3/4	R1	R1-1/4	R1-1/2
W	90	96	112	139	174

1) "L1 " is the total length when coupling gaskets withoutcompression.
2) The weight for reference.
Max Permission Error(for T30):
In the lower zone from Q 1 inclusive up to but excluding Q2 is ±5%
In the upper zone from Q2 inclusive up to and including Q4 is±2%
METROLOGY:

DN	mm	15	20	25	32	40
R	Q3/Q1	250	200	250	250	250
Q4	m3/h	3.125	5	7.875	12.5	20
Q3	m3/h	2.5	4	6.3	10	16
Q2	l/h	16	32	40.32	64	102.4
Q1	l/h	10	20	25.2	40	64
Max. reading	m3	9 999.9999			99 999.999
Min. reading	Liter	0.02			0.2
Pressure loss	△P	△P<63			△P<63
Max, Pressure	MAP	MAP16			MAP16
Max, Temperate	ºC	T30/T50			T30/T50

(For different Q3 and R, please contact with DZS manufacture).
REGISTER TYPE:
The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1.5 m cable with 2 cores in Red and Black.
Electric Data: Vmax=24AC/DC, Imax=0.01A Capacity of the Pulse output or Pulse output pre-equipped.
ADVANTAGES:
FAQ:
Q: What is your payment term?
A: 1.T/T,30% down payment, balance to be paid before shipment. 2.L/C.
Q: What is your main market?
A: Southeast Asia,Middle East ,South America,Europe etc.
Q: How about your capacity?
A: 50000pcs/month
Q: Can you give me a discount?
A: As you know, we are manufactory,so please believe us our price is competitive. If the quantity is big,we can consider give you
a discount.

Q: Can i get free samples from your factory?
A: Yes,samples can be free,however, freight has to be charged.
Q: If products have some quality problem,how would you deal with?
A: We will responsible for all the quality problems.

---
