PE PP PVC Small Size Bottles Toys Jars Blow Molding Machine

Product Description

PXB50
500ML - 2L Blow Molding Machine
Special Feature:
- High Speed Single Station For HDPE, PE, PP, PS, etc. Raw Material
- The whole hydraulic system equip Japanese YUKEN components
- Perfect Usage for high quality 500ML - 2L bottle, ocean ball, small toys etc.
- Imported hydraulic valve, seal and Pressure Proportional Control.
- Optional Multi-color
- Quick Action Speed, Stable Running
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	HITECH	Taiwan
Inverter	MITSUBISHI	Japan
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	SONON	China
Motor	SIEMENS	China

Basic Equipment

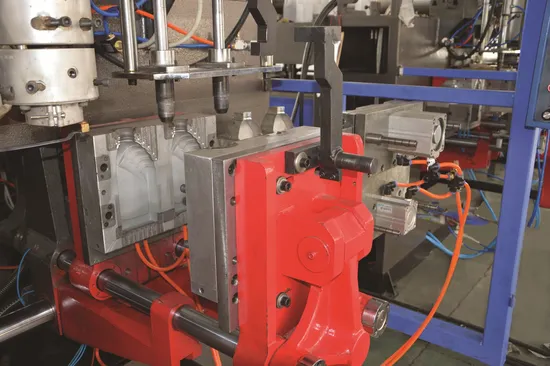

Clamping system	Single Station+High-precision guide+large arm cylinder axle
Extrusion System	Hard gear surface decelerator+Japan inverter
Die system	Center -incoming extrusion die with special steel
Hydraulic system	Japan hydraulic valve seal and proportional control
Control system	Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Parameters

Specifications
Material		PE,PP, PVC, PA
Max container capacity	L	2
Number of die	SET	1,2,3,4
Output(dry cycle)	Pc/hr	1500
Machine Dimension(LxWxH)	M	3.1x1.6x2.4
Total weight	T	3.0
Clamping Unit
Clamping force	KN	46
Platen opening stroke	mm	130-370
Platen size	mm	300x380
Max mould size(WxH)	mm	300x350
Mould thickness	mm	135-210
Power
Max drive	KW	16.5
Total power	KW	22
Fan power for screw	KW	0.25
Air pressure	MPA	0.6
Air consumption	M3/min	0.4
Average energy consumption	KW	12
Extruder unit
Screw diameter	mm	50
Screw L/D ratio	L/D	24
Melting capacity	Kg/hr	35
Number of heating zone	zone	3
Extruder heating power	KW	10.8
Extruder driving power	KW	11
Die
Number of heating zone	zone	2
Power of die heating	KW	4.2
Max die-pin diameter	mm	75
Center distance of double die	mm	130
Center distance of tri-die	mm	--
Center distance of tetra-die	mm	75

Delivery Time:
- No later than 30 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
