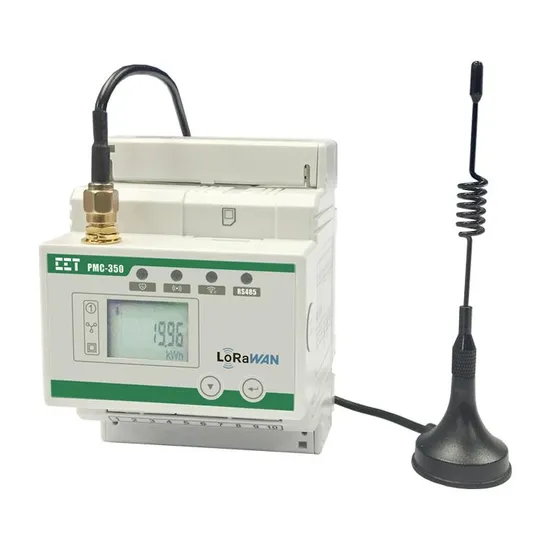

PMC-350-C DIN Rail Class 1 Three-Phase Wireless Multifunction Meter with RS-485 and Optional I/O LoRaWAN Module for Energy Measurement

Product Description

CET PMC-350-C 3-Phase LoRaWAN Optional 4 RTD Input DIN Energy Meter for Temperature MeasurementPMC-350-C 3-Phase DIN Energy Meter is CET's latest offer for the wireless IoT energy metering market using the LoRaWAN technology for its Long-Range wireless communication capability. Housed in a standard DIN form factor measuring 72x70x95mm, it is perfectly suited for extremely space restricting environment. With a standard RS-485 port and Modbus RTU protocol support, IEC62053-22 Class0.5S and IEC 62053-21 Class 1 compliance for 5A Input and SCCT/SCCTA Input respectively as well as optional support for LoRaWAN AS923-1/2/3/4, KR920, AU915 or EU868, it becomes a vital component of an intelligent, distributed and IoT based EMS. The PMC-350-C optionally provides 4xDI for Status Monitoring, 2xRO for Control and Alarming or 2xSS Pulse Output for Energy Pulsing as well as 2 or 4xRTD and 1xIresidual Inputs for Temperature and Leakage Current measurements, respectively.

Typical Application

• Industrial, Commercial and Utility Substation Metering • Building, Factory and Process Automation• Sub-metering and Cost Allocation• Energy Management and Power Quality Monitoring
• LoRaWAN Class A/C at AS923-1/2/3/4, KR920, AU915 or EU868

Feature Summary

Ordering Information

Dimensions

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.

---
