High Precision Vertical Milling Machine with Nt30 Spindle Universal

Product Description

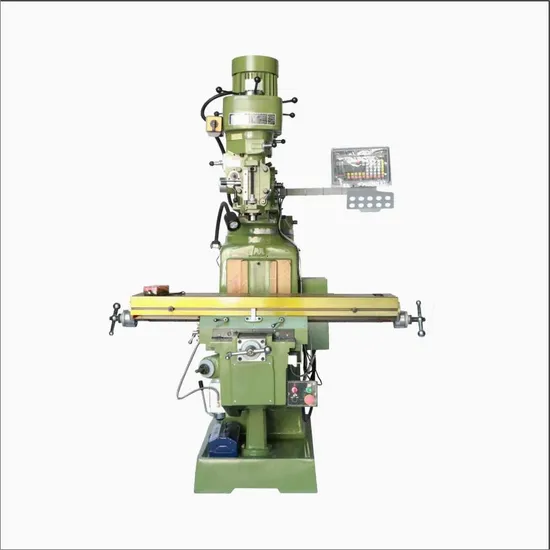

Introducing the state-of-the-art 5m Vertical Universal Turret Milling Machine, a powerhouse for all your metal milling needs. Featuring the robust Nt40 Spindle, this machine promises precision and excellence in every cut.
Product Description
Mechanical CharacteristicsCrafted from superior Meehanna cast iron, our machine boasts exceptional rigidity and stability, ensuring no deformation and consistent performance even under heavy workloads.The spindle is enhanced with a precision bearing combination, delivering formidable cutting force and unparalleled accuracy for all milling tasks.Our end milling head features an innovative inverted hanging design, guaranteeing outstanding accuracy and user-friendly operation, while offering seamless braking. Customize your experience with our selection of special function products.Utilizing advanced phosphorus meter copper, the nuts on the three-axis screw provide remarkable wear resistance and extend the machine's service life significantly.The XY shaft slides undergo high-frequency ripening treatment, enhancing tail wear resistance and substantially boosting the longevity of the machine.An integrated lubrication system is included to ensure the smooth and efficient sliding of components, maintaining operational excellence.
Product Parameters
1.Milling Machine Rotation Speed
The rotation speed is a key factor that influences both processing efficiency and cutting force magnitude. Generally, increased speeds enhance the cutter's capability, improve part surface quality, and reduce residual stress.
Milling Machine Cutting Speed Cutting speed is crucial for processing performance. It requires careful calibration based on material hardness, cutter material, and machine type to ensure superior results. Milling Machine Processing Accuracy Processing precision is crucial and has a direct impact on quality and stability. It is influenced by factors like cutting force, machine rigidity, and tool and workpiece clamping accuracy. Milling Machine Precision Stability Precision stability is vital for minimizing machining errors and ensuring quality. It's influenced by machine initial errors, thermal deformation, and tool wear.

Product Name
Product Name	Milling machine
Product model	5M
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	1000MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° around 45°
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	2000*1800*2500MM
	Approximate machine weight	1680kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, NT40 chuck/Z axis automatic lifting device	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
