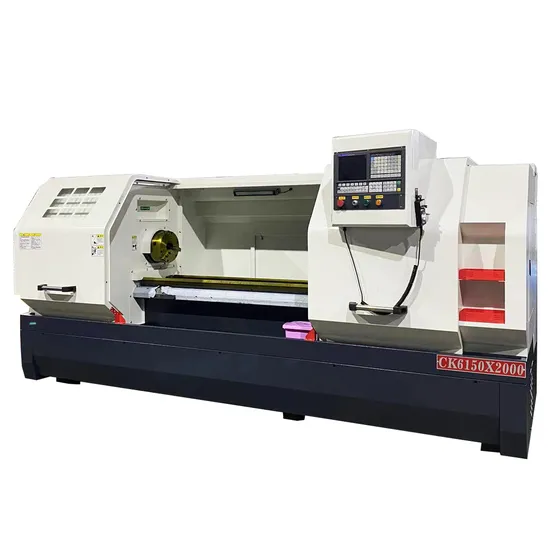

Ck6150-2000 Flat Bed CNC Lathe Machine Tools Metal Cutting Milling Drilling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

And the number	Item категория	Model модель	unit единица	parameter число
	Machining capacity Мощность обработки	The Maximum swing diameter over the bed Максимальный диаметр поворота станины	mm	Φ500
		The Maximum swing diameter over the slide Максимальный диаметр поворота прицепа	mm	Ф300
		The Maximum machining diameter Максимальный диаметр резки	mm	Φ500
		The Maximum machining length Максимальная длина заготовки	mm	2000
	Stroke путешествовать	X/Z axis Maximum stroke Максимальный ход оси X/Z	mm	300/1850
		X/Z axis Minimum movement unit Минимальная единица смещения оси X/Z	mm	0.001
	Spindle Веретено	The spindle hole diameter Диаметр шпинделя через отверстие	mm	Ф82
		Spindle Series Серия основных осей		() continuously variable transmission
		Spindle speed Предельная скорость шпинделя	rpm	50-1600
		Spindle nose Конец главного вала		A2-8
		Spindle Power(Frequency conversion) Мощность главного двигателя (преобразование частоты)	kW	7.5
		Frequency changer преобразователь частоты	kW	7.5
		X/Z axis Ось X/Z	N.m	5/7.5
		X/Z axis fast move velocity Быстрая скорость оси X/Z	m/min	6/8
	Feed knife holder	Tool rest form Тип подручника		6-станционная электрическая турель(6)
		Tool shank size Размер стержня инструмента	mm	25*25
		Repeatable tool holder positioning accuracy Повторяемая точность позиционирования держателя инструмента	mm	≤0.004
		Tailstock inside diameter Диаметр втулки хвостового седла	mm	Φ75
		Tailstock inside stroke Ход втулки хвостового седла	mm	200
		Коническое отверстие в верхней части хвостового седла		Mohs 5#
	other	Electricity demand (power/current) Спрос на электроэнергию (мощность/ток)	kW/A	15kW/20A

Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, it can be ready the machine within 15 days. if you need to customized, the time will be little longer.You can place order according to delivery time and ship time. We will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, lathe warranty is one year and system warranty is three year
5. What is the package of the machines?
A:The machines standard will be packed in wood case. If the machine is very heavy, we will reinfore the box with iron frame.

---
