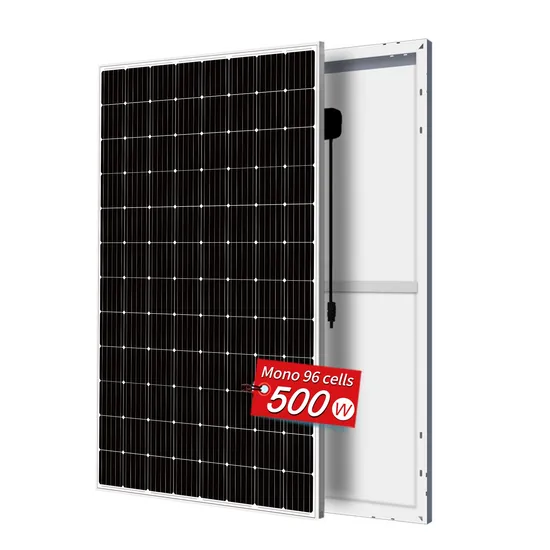

OEM Manufacturer Mono 500W PV Solar Panel for Projects

Product Description

Technical Specification Data(STC) of Solar Panel

Model of Solar Panel	RS480M-96	RS485M-96	RS490M-96	RS495M-96	RS500M-96
Peak Power Watts-Pmax(Wp)*	480	485	490	495	500
Maximum Power Voltage-Vmpp(V)	48.35	48.40	48.45	48.50	48.56
Maximum Power Current-Impp(A)	9.93	10.03	10.12	10.21	10.30
Open Circuit Voltage-Voc(V)	58.89	58.92	58.95	58.98	59.01
Short Circuit Current-Isc(A)	10.47	10.57	10.67	10.77	10.87
Module Efficiency (%)	18.73	18.92	19.12	19.32	19.51
Power Output Tolerance-Pmax(W)	0~+5
Temperature Coefficient of Pmax	-0.37%/ºC
Temperature Coefficient of Voc	-0.30%/ºC
Temperature Coefficient of Isc	0.06%/ºC
STC	Irradiance 1000W/m2, Cell Temperature 25, Air Mass AM1.5

Detailed Images of Solar Panel
EVA Solar Cell Frame High Transmittance EVA,High GEL Content To 5BB, 6BB, 9BB, 10BB, 12BB Available 35mm 40mm Anodized Aluminium
Provide Good Encapsulation And Protect Cells 158.75cells, 166cells, 182cells,210cells Alloy
From Vibration With Longer Durability. High Efficiency Cells Anti-Pid Black/Silver Color Optional Junction--Box Compatible MC4 Label IP 68 rated Waterproof MC4 Compatible /MC4 EVO2/TS4* Waterproof Customized Label
Innovative Full-Glue-Filled 500N Tensile Strength OEM/ODM with your Logo Portrait/Landscape Length Optional Female/Male/Fuse Professional Silver Color
Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available Delivery Details : 5-10 working days
Factory of Rosen Solar
Projects of Rosen Solar
Rosen Solar, with more than 4 automatic lamination lines, are professional manufacturer of solar panels with wide power range from 5w to 300W, 450W, 550W,
600W, 650W, 680W, 700W, 800W etc. Solar panels, like PERC, N-Type TOPCON, HJT, Shingle types etc and bifacial/double glass, single glass, full black, black
frame, and frameless half cell panels Mono and Polycrystaline panels, are all available in China and Europe stock. Tier 1 panels brands like JA, Jinko etc are
available too. OEM and ODM service acceptable with the min one pallet. We have all certificates like TUV, CE, ISO, IEC etc, And technicians will provide
manuals, and installation CAD SKETCH designs for roof or ground installation.

---
