Biomass Wood Pellet Machine Ring Mode Biomass Particles Fuel Molding Machine

Product Description

Our Advantages

Product Description

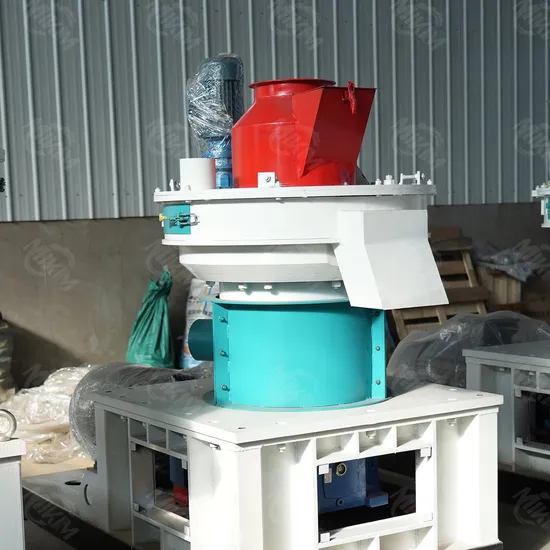

Ring die wood pellet machine is suitable for wheat straw, corn straw, peanut seedlings, cotton straw, tobacco straw and other crop straw and various wood chips, bark, sawdust and other raw materials, stable output, simple operation. The machine adopts gear transmission, the spline shaft is linked to the drive shaft, and then the drive shaft drives the inner surface of the press wheel mold to complete the pressing process. This process material by high pressure, high temperature effect, produce physical changes or appropriate chemical changes (according to the material), make powder material to form a lengthening cylindrical solid body, the cylindrical solid body continues to extend until the uniform distribution of the mold around the cutter cut, the formation of a certain specification of pellets.
Detailed Photos

Model	450	550	750	900
Power(KW)	45	55	75	90
Speed(r/min)	1450	1450	1450	1450
Diediameter(MM)	400	450	500	550
Output Size(MM)	4-12	4-12	4-12	4-12
Temperature(ºC)	80-100	80-100	80-100	80-100
moisture(%)	15-25%	15-25%	15-25%	15-25%
Voltage(V)	380	380	380	380
Capacity(t/h)	0.6	0.8	1-1.2	1.2-1.5
Size(mm)	1400*750*1550	2600*1300*2300	3500*1600*3200	4600*2300*3800
Weight(T)	2.9	3.6	5.6	6.8

Features and Advantages
Features:1.The hard surface helical gear deceleration, tooth surface widened, modulus increased, meshing degree, load bearing capacity enhanced, is the conventional reducer life 3-5 times. 2.Reducer gear adopt German NLES gear grinding machine, smooth transmission, low noise, long life, can withstand high power and heavy load. 3.Spindle shorten, bear torque. 4.Reducer lubricating oil adopts independent water cooling system device, reduce oil temperature, increase the service life of internal bearing. 5.Spindle bearing, the reducer itself rare lubrication, that is, to achieve lubrication effect and reduce the temperature of spindle bearing. 6.Roller bearing, using independent automatic oiling system, timing oiling, good stability, prolong service life.
Advantages: 1.Vertical feeding Vertical feeding, direct in place, static mold, rotary press wheel, material centrifugal, evenly distributed around. 2.Circular mold Double-layer annular mold, vertical structure, the use of pelleting chamber cooling cooling dual-use, more choices, more harvest; 3.Independent discharging device Independent discharging device, ensure the forming rate of particles, reasonable design, low consumption and high energy. 24 hours work, automatic lubrication. 4.Environmental protection and energy saving The main force element adopts high alloy wear-resisting material, the life of wearing parts is twice that of similar products. Sawdust straw pellet machine is a special equipment for processing sawdust straw fuel particles, low noise, low fault, low energy consumption, continuous production of non-stuck machine.
The use of biomass fuels is a new type of bio-energy. It can replace wood, raw coal, fuel oil, liquefied gas, etc. It is widely used, such as:1. Civil heating and domestic energy: high fuel utilization and easy storage.2. Biomass industrial boiler: as the main fuel for industrial boilers, replacing coal combustion, reducing atmospheric emissions and pollution.3. Power generation: It can be used as a fuel for thermal power generation.
Final Production
Certificate
Company Profile
Customer visit

---
