High-Precision Injection Molding Machine for Plastic Toy Making Fruit Basket

Product Description

High-precision Injection Molding Machine for Plastic Toy Making Fruit Basket
Product Parameters

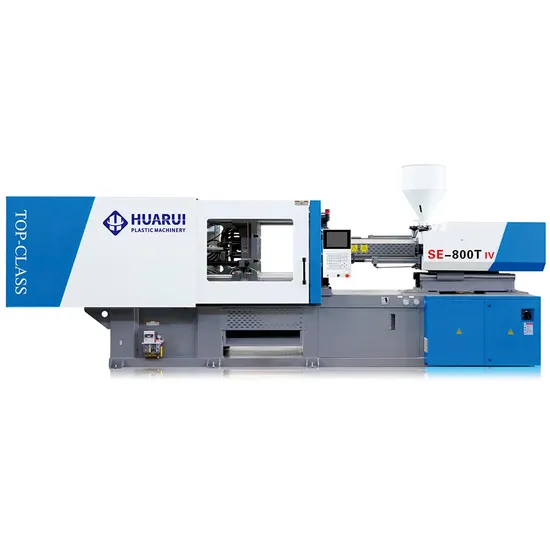

SE-800T IV Plastic Injection Molding Machine Information
Item		Unit		A	B		C	D
Screw diameter		mm		95	100		110	120
Theoretical shot volume		cm³		3544	3927		4752	5655
Shot weight (PS)		g		3225	3574		4324	5146
Shot weight (PS)		oz		113.8	126.1		152.5	181.5
Length/Diameter ratio		L/D		23.2	22		20	18.3
Injection pressure		Bar		1846	1666		1377	1157
Injection rate		cm³/sec		712	789		954	1136
Max.screw speed		rpm		120
Clamping force		KN		8000
Max.daylight		mm		1525*1475
Open stroke		mm		1030
Space Between Tie-bars		mm		1050*1000
Min mould dimension		mm		400
Mould thickness range		mm		1050
Ejector force		KN		190
Ejector stroke		mm		270
No.of ejector pins		unit		17
Max.motor power		KW		55+55
System pressure		MPa		175
Heater input power		KW		68
Oil filling capacity		L		1000
Machine size		M		11.2*2.35*3.5
Net weight		KG		39000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
