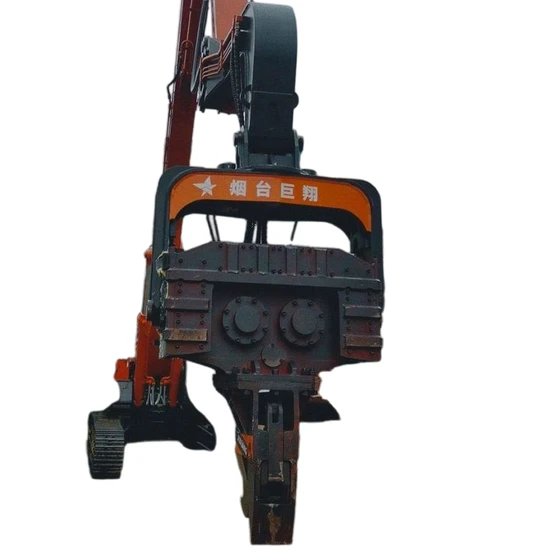

High-Performance Vibratory Hammer for Excavator with Torque Control

Product Description

Product Description
Detailed Photos

Hydraulic pile driver working principle and engineering application scope High frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam, building foundation etc. such short pile projects. Pile Driver Application The efficient of vibration pile method is higher than other methods. It is mainly are fit for driving and extracting sheet piles, I-steel piles, Cement square pile,cylinder pile, larsen piles in various shapes. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.

Excavator Use: Juxiang S350 Sheet Pile Vibro Hammer Short Description: 1. Perfectly compatible with approximately 20-ton excavators.
2. Outfitted with a superior Parker motor and premium brand bearing.
3. Delivers consistent and potent vibrations reaching up to 360KN, with an impressive piling speed of 7.5m/min.
4. Incorporates a robust and durable main clamp crafted through precision casting.
The S350 strikes an optimal balance between size, flexibility, and efficiency, making it an excellent choice for a wide range of construction projects.

Product Parameters

Model	Unit	S350	S500	S600	S650	S800
Vibration Frequency	Rpm	3000	2800	2800	2700	2400
Eccentricity Moment Torque	N.M	36	52	70	83.5	126
Rated excitation force	KN	360	450	600	650	800
Hydraulic system pressure	Mpa	32	32	32	32	32
Hydraulic system flow rating	Lpm	250	240	315	310	310
Maximum pile length (m)	m	6-9	6-15	6-18	6-18	6-22
The auxiliary arm weight	Kg	800	800	900	900	1000
Total Weight	Kg	1750	2750	3200	3200	3600
Suitable Excavator	ton	18-25	27-37	36-50	42-50	50-70

Certifications
Packaging & Shipping
To ensure the utmost safety of your goods, we provide professional, eco-friendly, convenient, and highly efficient packaging services.
Packaging Details: Export wooden box packaging or customized as per customer requirements.
Delivery Details: Shipping is completed within approximately 20-30 working days post-payment.
We rigorously test each product before delivery to guarantee that every machine meets our high standards. This is our commitment to our customers. Subsequently, we load the goods onto container trucks and transport them to the port.
Our Advantages
Our product is compatible with excavators from various brands. We have cultivated long-term, stable partnerships with several renowned brands.
Pile Hammer: How It Works
The vibrating pile hammer uses its high-frequency vibrations to induce high acceleration in the pile body, transmitting vertical vibrations that alter the soil structure around the pile, reducing its strength. The soil around the pile becomes liquefied, decreasing frictional resistance between the pile sides and the soil. Utilizing the excavator's downward force, combined with the vibrating pile hammer and the pile's own weight, the pile is driven into the soil. For pile extraction, the vibration condition helps pull the pile out using the excavator's lifting force. The excitation force needed for pile driving is comprehensively determined by site soil, soil conditions, moisture content, and type of pile and construction.
FAQ
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your vibro driver dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.

---
