Telecrane RC A21-E1b 6 Single Speed Remote Control Controller

US$48.00
1-11 Pieces
US$40.00
12-49 Pieces
US$38.00
50-799 Pieces
US$32.00
800+ Pieces

Basic Info.

Model NO.
A21-E1B
Certification
CE, FCC, ISO9001, RoHS
Code Type
Fixed Code, Learning Code
Color
Yellow
Encode Mode
NEC
Frequency
433MHz
Material
Plastic
Type
Button
Universal
Universal
Voltage
12V, 12-24V, 36V, 220V, 48V,380V
Control Distance
100m
Transport Package
Cartoon
Specification
33*21*17CM
Trademark
Telecrane
Origin
China
HS Code
8526920090
Production Capacity
50000PCS/Year

Product Description

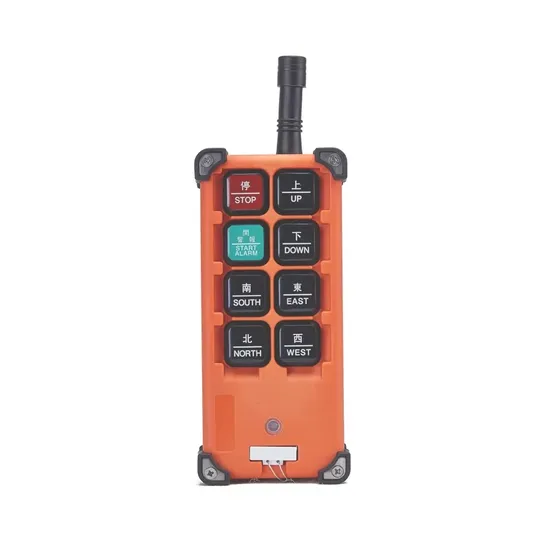

Telecrane A21-E1B F21-E1B Radio Industrial Remote Control
Different color can be customzied with MOQ 1000pcs; 12V, 24-48V, 110V, 220V, 380V are available.
Product specification:1.Have 7 function keys (6 single speed buttons + 1 start button ).
2. Control contact is up to 8.
3. With mushroom head rotation scram button
4. With battery voltage warning device, the power supply is cut off during low power.
A21 F21-E1B Transmitter Parameters
Material Glass-Fiber PA
Enclosure protection class IP65
Frequency range UHF:425-446 MHz
Transmitter power ≤10dBm
Transmitter power supply 2 AA alkaline batteries (not included)
Safety code 32 bits (4.3billion)
Temperature range -40ºC-+85ºC
Control distance up to 100 meters (it is available to customized long distance up to 200m)
Size 156x61x51mm
Weight 255g (without battery)
A21 F21-RXC Receiver Parameters
Material Glass-Fiber PA
Enclosure protection class IP65
Frequency range UHF:425-446 MHz
Receiver sensitivity -110dBm
Receiver power supply 12V, 48V, 220V, 380V(optional)
Safety code 32 bits (4.3billion)
Temperature range -40ºC-+85ºC
Cable length 1.65m (Other length can be customized)
Output contactor capacity 8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Size 205x86x80mm
Weight 620g
