HT5 Turning Center
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2750/1700/1850 mm
Product Description

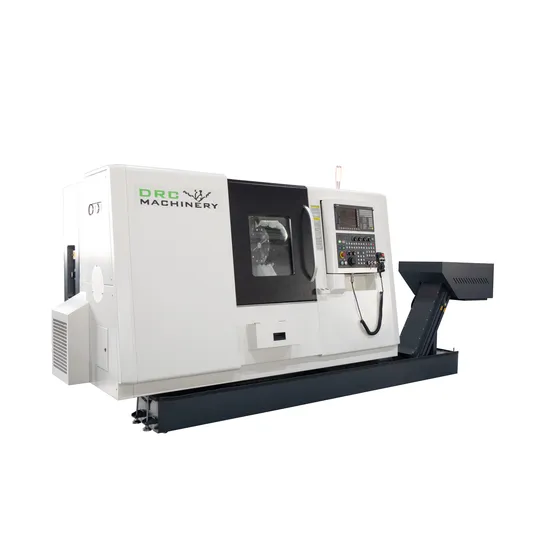

HT5MY Fanuc Inclined Bed Turning and Milling Complex Center 4-Axis Turning Center
Machine Description HT5MY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the right end of the fixed protective cover, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
HT5MY Fanuc Inclined Bed Turning and Milling Complex Center 4 Axis Turning Center Distributor HT5MY/ Industry:Fludics/ Material: 16MnCr5/ Size: 32x150mm/ Complete machining with driven tools Connector/ HT5MY/ Industry: Machinery/ Material: Ck45/ Size: 80x20mm/ Complete machining with driven tools Reduce sleeve/ HT5MY/ Industry: Hydraulics/ Material: Ck45/ Size: 70x80mm/ Chatter-free surfaces using the' Alternating Speed technology cycle Highlights: 1. Compact design with HT300 high tension Meehanite cast-iron machine bed. 2. Perfect accessibility and optimal working depth. 3. The ideal machine for training, with minimal space ocupy and suitable working depth to the spindle. 4. Increased productivity with up to 16 driven tools(optional). 5. Most updated CNC control technoligies: FANUC OiTF+ with Manual Guide i (as standard package) or SIEMENS 828D with Shopturn function (as standard package), and plenty of customized interface prepared.
Technical date
|
Spindle head
| Type
| FL 140 h5 / A2-6
|
Spindle maximum speed
| rpm
| 5000
|
Max. Torque
| N×m
| 112
|
Spindle power
| kW
| 11-15
|
Chuck diameter
| mm
| 210
|
Spindle bore
| mm
| 74
|
Front bearing diameter
| mm
| 100
|
Spindle bearing lubrication
| Type
| Grease
|
Linear motion lubrication
| Type
| Oil
|
Speed range
| rpm
| 5-5000
|
Work area
|
Maximum swing over bed
| mm
| 576
|
Maximum cutting diameter
| mm
| 390
|
Maximum cutting length
| mm
| 500
|
Maximum bar capacity
| mm
| 51
|
Travel of Z-axis
| mm
| 525
|
Travel of X-axis
| mm
| 180
|
Travel of Y-axis
| mm
| ±35
|
Ball screw
|
X/Z axis ballscrew DxP
| mm
| 32 x 10 /40x5/32x10
|
Feed
|
Rapid traverse Z
| m/min
| 24
|
Rapid traverse X
| m/min
| 24
|
Rapid traverse C
| m/min
| 12
|
Rapid traverse Y
| m/min
| 100
|
Feed force
|
Feed force X/Z
| N m
| 4500
|
Number of axis
|
| 4
|
Measuring system
|
X/Z axis measuring system
|
| Absolute rotative
|
(X / Z);VDI/DGQ 3441 Positioning
| mm
| 0.008/0.008/0.01
|
(X/ Z);VDI/DGQ 3441 Repeatability
| mm
| 0.005/0.005/0.008
|
>>
