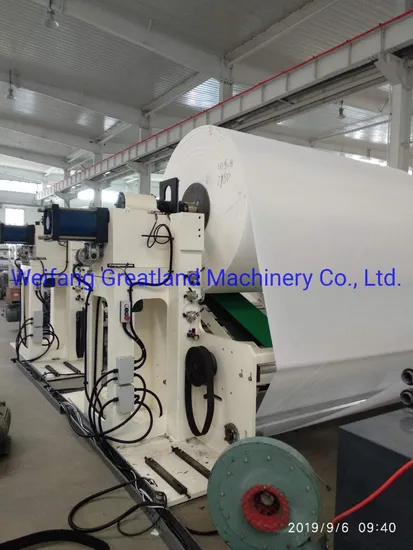

Description of the equipment: This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 150-180m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m,2.1m in width.
Model
| 1575
| 1880
|
Max Width Of Raw Paper
| 1750mm
| 2100mm
|
Diameter Of Raw Paper
| 1200mm(Other Size Can Be Ordered According To The Requirement)
|
Diameter Of Inner Core
| 76.2mm(Other Size Can Be Ordered According To The Requirement)
|
Outer Diameter Of Finished Product
| 90mm-135mm(Other Size Can Be Ordered According To The Requirement)
|
Outer Diameter Of Paper Core Of Finished Product
| 25mm-50mm
|
Finished Product
| Toilet Paper With Or Without Inner Core,Pressed Etc.
|
Parameter Setting
| HMI
|
Control system
| Controlled By PLC,Variable Frequency Speed Control ,Operated By Touch Screen
|
Perforating
| With 3 Spiral Perforation Knives
|
Embossing
| Embossing(Without,Single,Double,Steel To Flat Steel)
|
Bottom embossing Roller
| Wool,Rubber,Steel Roller
|
Max Speed
| 150-180m/min
|
Glue Spray,Cutting and rewinding
| Automatic
|
Air Source Pressure
| 0.5Mpa(Supplied By Customer)
|
Power
| 380V,50HZ
|
Motor
| 4-7.5kw
|
Edge Embossing
| Independent Pneumatic Drive
|
Unwinding Stand
| 1-4 Plies Normal Chain Drive
|
Paper Loading
| Loaded by Pneumatic
|
F&Q Q.:Are you a factory or trading company?A.: We are a factory and manufacturer.Q.:How does your factory do regarding quality control?A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.Q.:Where is your factory located? How can I visit there?A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.Q.:What's service or guarantee can you offer?A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
