China High Capacity Roller Crusher with Competitive Price

Product Description

Product Introduction

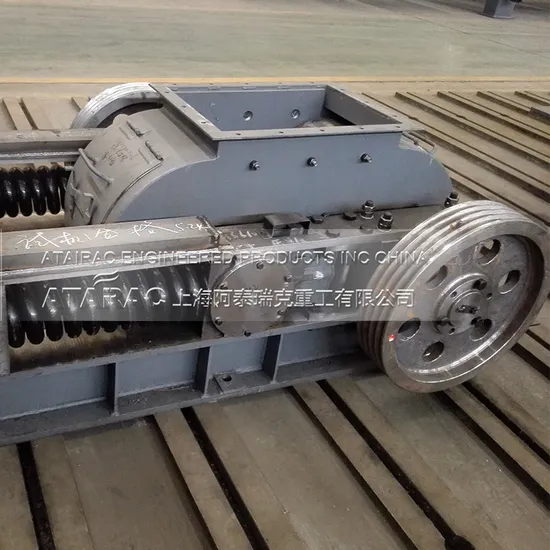

ATAIRAC PGQ Series roll crusher is applied to crush various medium hardness materials such as limestone, slag, coal etc. in metallurgy, cement, chemistry and other industries, it used as primary and secondary crushing equipment.
The crusher has many advantages, such as, simple structure, convenient maintenance, low cost.

Technical Parameters

Type	Model	Feed size(mm)	Discharge size	Capacity(m3/h)	Power	Dimension
			(mm)		(kw)	(mm)
StrongDouble-roller crusher	2PGQ 610×400	0-36	2-9	3-9	22	1785×2365×1415
	2PGQ 750×500	0-40	2-10	5-12	18.5×2	2720×2700×1400
	2PGQ 750×700	0-40	2-10	6-16	22×2	2800×3987×1705
	2PGQ 900×500	0-40	2-10	9-30	22×2	2750×1790×2065
	2PGQ 900×900	0-40	2-10	11-45	~37×2	2750×2180×2065
	2PGQ 900×1200	0-40	3-10	15-60	~55×2	2750×2480×2065
	2PGY 1200×1000	0-40	3-12	10-50	~55×2	3690×3430×2700
	2PGY 1200×1200	0-40	3-12	18-68	~75×2	3690×3630×2700
Four-roller crusher	4PG750×500	30-60	2-10	3-10	18.5+11/17	2760×3585×2650
	4PG900×700	40-100	2-10	16-20	30+12/24	3150×4175×3147
	4PG900×900	40-100	2-10	20-25	45×2	3150×2650×3147
	4PGY1200×1000	20-40	3-10	43-68	75+40/55	5410×5600×3600
Double teeth roller crusher	2PGC450×500	100-200	25-100	12-32	<11	2260×2206×766
	2PGC600×750	300-600	50-125	50-75	<22	3265×2850×1310
	2PGC900×900	0-800	75-150	60-110	<30	3945×3405×1895
	2PGC920×1200	0-800	40-100	90-150	<75	3848×3480×1394
	2PGC1200×1500	0-1000	-100	150-250	2*55	8010×4050×2050

Product Features

(1) Adopt triangle belt driving between motor and reducer. The triangle belt will slip if load is too big, which can protect the motor.
(2) The connection between the swing roller part and reducer adopts universal spindle coupling, which not only make sure the swing roller have enough adjusting range but also protect the motor and reducer in case that damage due to overload.
(3) The roller part is the hardcore part of the crusher. The connection between mill roller and main shaft adopts key and taper sleeve, which is dismounting easily.
(4) The gap between two rollers can be read from staff. The place where there is a hole under the staff is the zero reference line. The gap is 10 mm when the machine leaves the factory. The client can adjust the roller gap according to requirement.
(5) The frame and base frame adopt box type structure, which is strong, safety and reliability.
(6) The workers can adjust the speed of two rollers through change the motor triangle belt. The efficiency will be good when the speed of two rollers is not the same, but roll skin wear faster.

Working Principle
There is a wedge-shaped device or gasket adjustment device between the two rolls and on the top of the wedge-shaped device placed an adjusting bolt. When the adjusting bolt pulls up the wedge, the wedge will move the movable roll from the fixed roll, so the gap between the two rolls become large, and the discharging granularity will get big. When the wedge goes down, under the effect of pressure spring, the gap between them become small and the discharging granularity will get small. The gasket device adjusts the granularity of discharging material by increasing or decreasing the number or thickness of the gasket. When the gasket number increases, the gap between the two rolls become large and the discharging granularity will get big. When the gasket number decreases, the gap between the two rolls become small and the discharging granularity will get small.
Package and Delivery
The roll crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Company Overview
ATAIRAC History&Scale
Established Time:In 1958
Production Base:Around 300,000 square meters
Employees No.Around 1000
Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates:ISO, CE,BV,TUV,GOST
R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery
ATAIRAC Crushing Solution
3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line

FAQ
1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.
2. How long is the gurantee period of your double roll crusher?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidence.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer.

---
