Plastic Roll Scrap PP PE Film Pelletizing Line with Force Feeder Machine and Degassing Vent

Product Description

Plastic Roll Scrap PP PE Film Pelletizing Line with Force Feeder Machine and Degassing Vent
Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our RCDJ series compactor granulator can be pull strip cutting method, or water ring cutting method for option

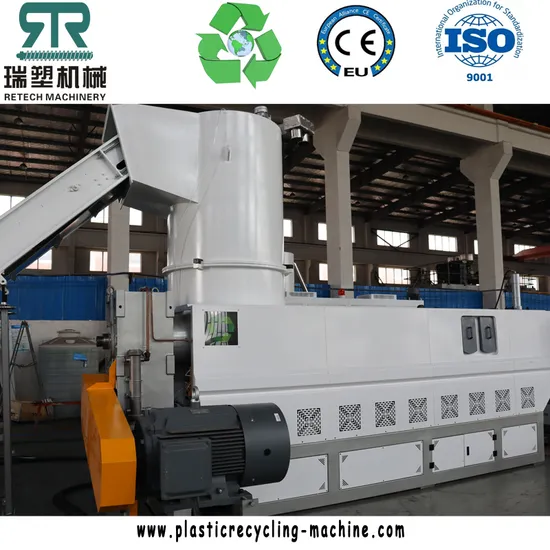

Plastic Roll Scrap PP PE Film Pelletizing Line with Force Feeder Machine and Degassing Vent Consists of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet.
Detailed Photos
Product Parameters

Model	Data of compactor		Data of single screw extruder			Throughput rate(Kg/hr)
	Efficiency volume (Liter)	Motor power (KW)	Diameter of screw(mm)	L/D	Motor power(KW)
RCDJ85	300	37	85	33	55	160-220
RCDJ100	500	55	100	33	90	280-360
RCDJ130	800	75	130	33	132	450-550
RCDJ160	1000	110	160	30	185	650-750
RCDJ180	1200	132	180	28	250	800-1000

Certifications
Packaging & Shipping
Exhibition
Features
Advantages:
1. Our RCSJ series PE PP Film Double Stage Pelleting Line/Plastic Granules Making Machine/Production Plant compactor pelletizing line has pull strip cutting, and water ring cutting method(include vertical water ring cutting and horizontal water ring cutting) for option.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line- bearing, teco contactor, Japan Omron temperature controller, ABB or TECO invertor, Siemens motor, and Siemens PLC control.
4. The whole production line with CE certification, ISO9001 certification.

---
