Welcome to visit

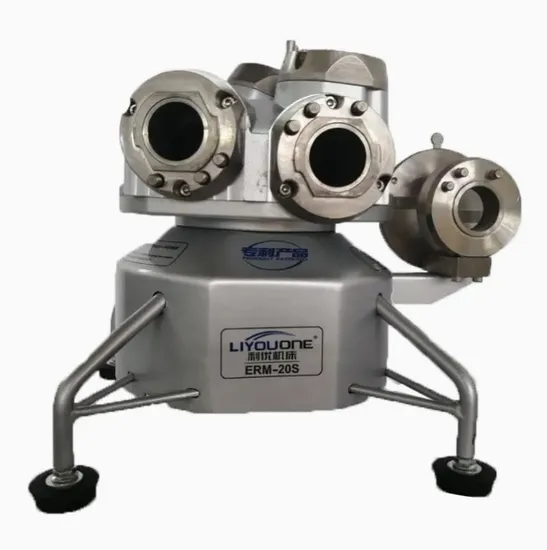

Versatile Drill Bit Re-Sharpening Machine for All Sizes

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DRM-20S
Type
Multi-Use Grinding Machine
Processing Object
Drill Bit
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Applicable Diameters
φ3~φ20mm
Grinding Scope of The Apex Angle
90°~140°
Grinding Wheel
D20CBN (Sdc Choose)
Motor Output
250V/250W
Weight
13kg
Normal Accessories
Collet3~20mm(18PCS)Hexagon Wrench*2PCS
Transport Package
Wooden Box
Specification
φ 3~φ 20mm
Trademark
LIYOUONE
Origin
Tianjin, China
HS Code
8501320000
Production Capacity
320mm*350mm*330mm

Product Description

Product characteristics
FUNCTION/FEATURE
1.Can grind standard twist dill of direct shank and cone shank
2.Applicable to tungsten carbide and high-speed steel drills re-sharpening.
3.Length of drill to be grinded has no limitation.
4.Can adjust and set edge grinding amount.
5.After grinding,drill is parabolic shape,processing and cutting are more smooth.

Grinding wheel:SDC wheels used for tungsten carbide tools,CBN wheels used for high-speed steel tools.
Product Parameters
Model DRM-20S
Applicable diameters φ3~φ20mm
Grinding scope of the apex angle 90°~140°
Grinding wheel D20CBN
(SDC Choose)
Motor output 250V/250W
Weight 13KG
Normal accessories Collet φ3~φ20mm(18pcs),Hexagon wrench*2pcs,
Chuck group*1Group,controller*1pcs

Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
FAQ
Q:What's your main products of your company?A:We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC MillingMachine,CNC TurningMaching, Vertical Machining Center ,Horizontal MachiningCenter, Lathe Machines, Turning andmilling composite processing so onQ:Where do you export?A:The whole world.Q:Could you produce non-standard products?A:Yes, we can. Please supply samples or drawing.Q;How do you transport it?A:Provide Transportation Solution DDP/CIF/FOB/FCAQ: What's the Payment Terms?A:T/T ,30% initial payment when order,70% balance paymentt before shipment.Q:What's the MoQ?A:1 set .(Only some low cost machines will be more than 1 seet )
We want to know:1.We strongly suggest you to tell us size, material of your workpiece for ourevaluation if possible, better to send us workpiece drawing, so that we canrecommend you most suitable model!2.lf need CIF Price, please kindly tell us the port of destination
