CNC Steel Metal Plate CNC Drilling Machine for Plate

Product Description

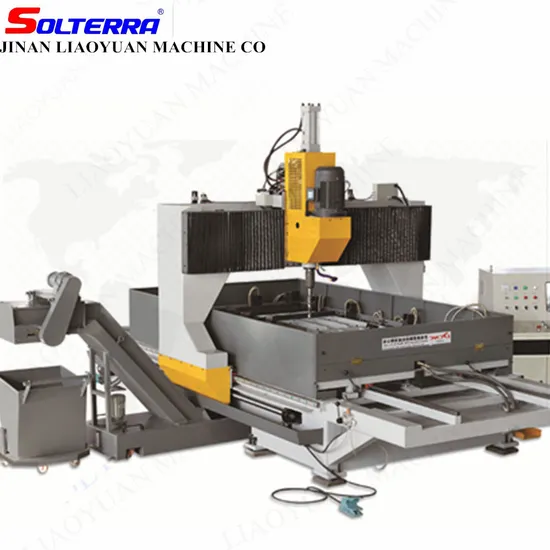

Steel Metal Plate Cnc Drilling Machine Plate rilling Machine PLD2012
MACHINE APPLICATION

1.The machine is mainly used to drill plates of all kinds steel structures.
2.High efficiency and stable working accuracy, Easy to operate.

MACHINE FEATURES

MAIN FEATURES: 1. The machine is mainly composed of base, gantry, drilling unit, chip removal system, electric system, hydraulic system and centralized lubricating system etc.
2. This machine used stroke self-controlled drilling unit. Rapid feeding,working feed and rapid withdrawing are transformed automatically without presetting any parameters manually such as the length of the drill and the thickness of the workpiece before operating, so that the machine is easy to operate.
3. Workpieces are clamped tightly by hydraulic clamps, For small work pieces the machine can clamp four groups together so as to reduce the preparation period of production and increase the efficiency.
4. The software of host computer is humanized designed. The machine's running data can be shown directly on the real time monitor and I/O monitor interfaces.
5. The machine uses centralized lubricating system to make sure all the function parts being well lubricated thus improve the performance and extend the lifetime of the machine.

TECHNICAL PARAMETERS

TECHNICAL INFORMATION:

Model		PLD2012
Size of workpiece	Thickness of workpiece(mm)	(Max)80/100
	Width x Length(mm)	1200×2000(One piece)
		1000×2000(Two pieces)
		600×1000(Four pieces )
Drilling spindle	Quick-change drill chuck	Morse 4#
	Diameter of drilling head(mm)	Φ10-Φ50
	Rotate speed(r/min)	120-560
	Stroke(mm)	320
	Processing feeding	Hydraulic steeples speed adjustment
Hydraulic clamping	Thickness of clamping(mm)	15-80/35-100
	Quantity of clamping cylinder	12
	Volume(L)	Appro.100
Air Pressure	Source of compressed air(MPa)	0.4
Motor	Spindle(kW)	5.5
Total power	kW	15
Overall dimensions	Length x Width x Height	3200×2300×2400
Weight	Main Body(kg)	Approx 4510

LIAOYUAN CO' SERVICE
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery
overseas.
LIAOYUAN COMPANY PROFILE
JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machine, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drlling Marking Beveling machine, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provide turkey solution and perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today

LIAOYUAN MACHINE QUALIFICATION
The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.

FAQ


Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time

---
