External Grinder/Grinding Machinery/Surface Grinding Machine/Internal Grinder

Product Description

CNC GRINDING MACHINE
CNC GRINDER

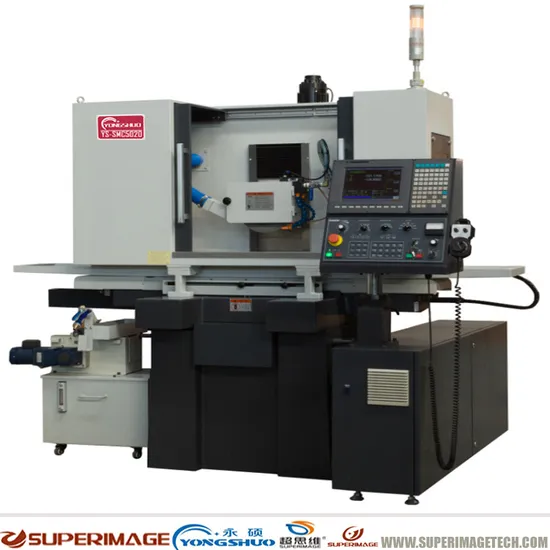

5020 CNC GRINDING MACHINE
DIGITAL CONTROL CNC GRINDER
HIGH PRECISION CNC SURFACE GRINDING MACHINE
HIGH PRECISION CNC CYLINDRICAL GRINDING MACHINE
HIGH PRECISION CNC EXTERNAL GRINDING MACHINE
CNC EXTERNAL GRINDER
CNC CYLINDRICAL GRINDER
CNC INTERNAL GRINDER
CNC INTERNAL GRINDING MACHINE
Specially For metal grinding
....
Multi-function:
High Accuracy, High Efficiency, High Quality, High Hardness, High Stability
Low cost, Low noise, Low consumable, Low failure rate, Less money
Yongshuo CNC Grinding Machine:
High Precision, High Rigidity, High Stability, High Efficiency, Long Use Life
SuperImage-Yongshuo CNC Surface Grinding Machine/CNC External Grinding Mahcine/CNC Internal Grinding machine:
The following specification is only as a reference:

Item				unit	YS-CMC5020
Overall working area (L×W)				mm	510×200
Longitudinal and cross travel				mm	560×220
Distance spindle center to table				mm	460
Table load incl. magnetic chuck				kg	210
Table (longitudinal)	T-Slot (Size* Number)			mm×n	14×1
	Table driven mode			/	Ball screw+servo
	Table Working speed			m/min	3-25
Saddle (cross)	MPG feed	Feed per graduation of handwheel		mm	0.001/0.01/0.1
		Feed per revolution of handwheel		mm	0.1/1/10
	Auto feed	Step feed		mm	0-25
		Continuous feed rate		mm/min	0-1200
	Rapid cross feed			mm/min	0-1200
Grinding head (vertical )	Wheel dimension			mm	Φ200×φ31.75×20
	Spindle diameter			mm	Φ80
	Spindle speed			r.p.m	500-3600
	MPG feed		Feed per graduation of handwheel	mm	0.001/0.01/0.1
			Feed per revolution of handwheel	mm	0.1/1/10
			RMinimum feed	mm	0.001
	Sparkout times			Times	0-99
	Rapid elevating			mm/min	0-1500
Numerical control system				SYNTEC 21MA
Motor	Spindle motor			KW	2.2
	Cross servo motor (AC servo)			KW	0.85
	Vertical servo motor(AC servo)			KW	0.85
	Hydraulic motor			KW	1.5
	Coolant motor			W	180
Transport packing size(L×W×H)				mm	2700×1950×2400
Floor space(L×W×H)				mm	2700×2200×2200
Net weight/gross weight				kg	2250/2450
Power supply required(accessories not included)				KVA	8
Working accuracy
Parallelism of machine face to base surface:300:0.002mm				Surface Roughness:Ra0.08um

2. Price Terms:
(1).For different hardware and software and function configuration, the price is different.Please email us for quotation and details.
(2). Delivery Time and Transport Method:
Delivery Time: 30 Days after receiving the down payment.
(3). Payment Method: By T/T via Bank
Down payment: 30% of total amount. Before delivery, 70% balance need to be paid.
(4). Quality Warranty:
In China Mainland, within 12 month, SuperImage is responsible for repairing and maintenance without charge. If users ask for a spot installation, maintenance, and repairs aboard, the business trip fares (usually tickets, hotels, and etc.) need to be calculated additionally.
(5). About training:
After the contract is signed, the user can send someone to the seller's factory (SuperImag-Yongshuo) for the spot training for three days before the machine is in place. Participants in the training should have certain machine tool operation skills.
Training Contents:
Operation, including:
Introduction of Switching Procedure;
Key Function of Operating Panel;
Notice of Machine Tool Operation and so on;
Programming, including:
Introduction of Coordinate System;
G Instruction, M/S/T Instruction, Composition of Program;
The instruction of the programming structure;
The editing/storing/using of program and so on;
Programming exercises.
Maintenance, including:
Introduction of mechanical/circuit structure;
Key points of daily maintenance;
General fault diagnosis methods;
General Introduction of troubleshooting methods, maintenance exercises, etc

---
