Product Details
Product Description
Product Description
Features

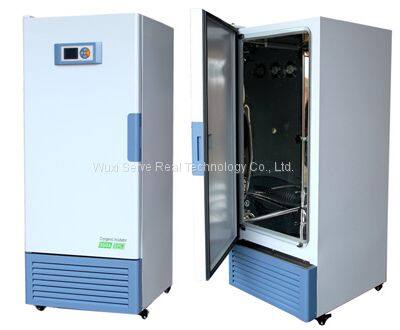

● Provided with mirror surface stainless steel one-piece forming studio, and each corner arc is excessive without dead angle to prevent the breeding of bacteria. The partition bracket can be freely installed and removed, which is convenient for cleaning in the box.
● ★Adopt PID microcomputer control system, which integrates fixed value control and multi-segment programming control two working modes into one, one machine has multiple functions. Expand the scope of use of users and better serve users.
● Provided with color large-screen LCD display, multiple groups of data are displayed on the whole screen, menu-type operation interface, simple and easy to understand and easy to operate.
● The system integrates studio lighting and sterilization functions, making integrated control more convenient.
● With system self-tuning function.
● It has the function of scheduled switch on and off.
● With over-temperature alarm function, parameter memory function, call recovery function.
● There is a test hole on the left side of the box, which is convenient for experimental operation and temperature measurement.
● Adopts double-layer door structure design, which has better thermal insulation performance, which greatly reduces the influence on the temperature when observing the situation in the working room.
● Equipped with international brand compressors and circulating fans, environmentally friendly refrigerants, high efficiency, low energy consumption, and more energy saving.
● With defrosting function, it can fully guarantee the long-term stable operation of the system.
● Equipped with leakage protector for safer and more reliable operation.
● Equipped with high-quality self-locking universal wheel, which is convenient for equipment movement and reliable locking.
Ordering information
Model
| PYL-100A
| PYL-150A
| PYL-250A
| PYL-350A
|
voltage
| 220V 50Hz
|
Temperature control range (℃)
| -20～65
|
Temperature Resolution (℃)
| 0.1
|
Temperature fluctuation (℃)
| ±0.3
|
The refrigerant
| Environmentally friendly refrigerant 404A
|
Input power (kw)
| 1.0
| 1.2
| 1.5
| 2
|
Studio size (mm)
| 500*400*550
| 500*400*750
| 550*550*850
| 550x550x1140
|
Product Dimensions (mm)
| 640*655*1125
| 640*655*1325
| 690*805*1425
| 690x805x1715
|
Product packaging size (mm)
| 770*700*1285
| 770*700*1485
| 820*850*1585
| 870x910x1875
|
Number of partitions (blocks)
| 2pcs
| 3pcs
|
Note:
1. The performance parameter test is under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH
2. Working environment temperature: 5-35℃
>>
