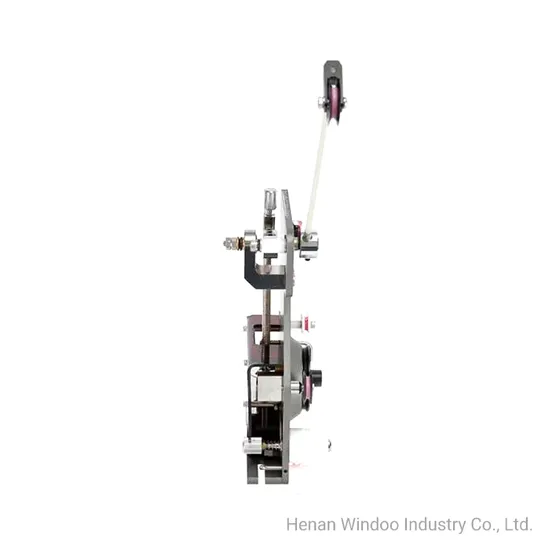

Series Coil Winding Tension Device Mechanical Wire Tensioner

Product Description

Product Description
Mechanical Tensioner(tension device) is one of the vital parts in the coil winding process.It is used to ensure the consistency of the wire tension during the winding process.By using a tensioner,Wire Tension can be adujsted and pre-set to the require value according to the application so as to achieve appropriate winding condition,and to ensure the conformity of each coils technical parameters.
The mechanical tensioner is the key component of the winding machine to produce adjustable tension when winding, so that the enameled wire winding with appropriate tension, so that the winding coil is tight and suitable tight, full, to ensure the consistency of the technical index of the coil.

Detailed Photos
Product Parameters

Model	Applied wire diamiter(mm)	Tension scope(g)
WD01	φ0.02-φ0.04	2.0-11
WD02	φ0.03-φ0.06	7.0-30
WD03	φ0.04-φ0.08	9.0-50
WD04	φ0.03-φ0.08	6.0-50
WD05	φ0.06-φ0.13	20-130
WD06	φ0.08-φ0.16	40-200
WD07	φ0.16-φ0.25	90-500
WD08	φ0.12-φ0.40	70-600
WD09	φ0.20-φ0.60	200-2000
WD10	φ0.50-φ1.20	1000-5000
WD11	φ0.60-φ2.00	2000-10000

Our Advantages
Wudu Company takes "quality first, technology first, service first, customer first" as the purpose, always "pragmatic, scientific management, integrity-based, believe in management and control innovation, constantly improve their own skills" concept.
How does the tensioner help the product:
1: Ensure the consistency of coil electrical performance and production process technical indicators;
2: The required tension can be freely controlled with high precision, improve the appearance of the coil, make the coil smooth and full.
3: can save enameled wire (according to a single product may be small, if calculated according to the annual output, this number is amazing)
FAQ
Q1. How soon can I receive a quote?
The quotation will be sent to you within 24 hours of receiving the inquiry.
Q2. Can you give me a sample?
Samples can be provided according to customer requirements.
Q3. How long can I get the samples and quality?
Usually it takes 7 days to produce samples. Bulk order generally takes 7-15 days. In case of urgency, the delivery time may be delayed
Q4. What are your payment terms?
Wire transfer, 50% deposit, 50% balance. Other payment methods such as Paypal, Western Union, L/C can be negotiated.

---
