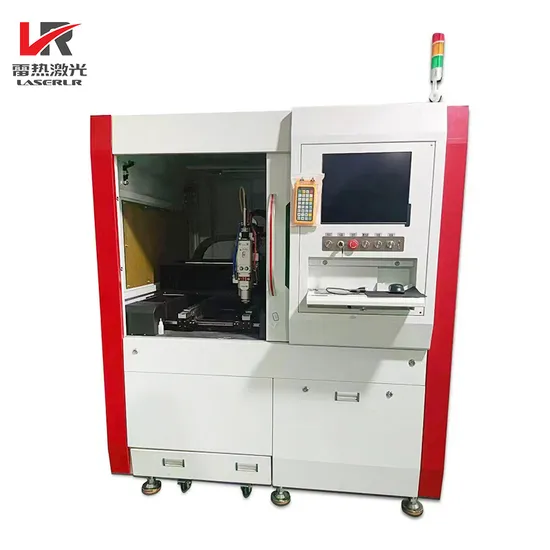

Factory Price 1000W 3000W High Precision Fiber Laser Cutter Machine for Steel and Aluminium

Product Description

Product Description
Feature of Fiber Laser Cutting Machine
Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing

Fiber Laser source			1000W/1500W/2000W
Transmission system			Taiwan Hiwin Ball-screw
Speed Reducer			Taiwan
Motor			Servo motor from Japan

Machine Techinical Parameter:
Working area (L*W)	3000×1500mm
X-axis running area	3000mm
Y-axis running area	1500mm
Z-axis running area	1000mm
X/Y axis Repeated Position Precision	±0.03mm
Max. Running Speed	100m/min
Max. accelerated speed	0.5G
Machine weight	2500Kg
Max. Load on working table	500kg
Phase	Triphase
Voltage	380V
Frequency	50Hz/ 60Hz

Advantages of Fiber Laser Cutting Machine
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 20m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Applied Materials of Fiber Laser Cutting Machine
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Widely Used
Scope of application: plumbing and sanitary ware, new energy industry, pipe processing, bicycle manufacturing, automobile manufacturing, aerospace, kitchenware industry, medical equipment, furniture industry, agricultural machinery. Welcome to consult and customize!
Related Products


Cutting Samples
Cutting Samples
A.Multifunction cutting for round, square, rectangle and oval pipes!
B.lt can straight cut, angle cut, make holes, etc.
C.Smooth and burr-free cutting.
D. Cutting loss 0.1mm/cut only.
E. Excellent cutting accuracy ±0.1mm Company Profile
Ningbo Heat Laser Technology Youyang Company was founded in 2018. It is located in Ningbo City, Zhejiang Province, an important port city on the southeast coast of China and the economic center of the Yangtze River Delta. It is a professional metallurgical company integrating design, manufacturing and sales. Innovative enterprise of pipe cutting equipment.
Since its establishment, Leire Laser has always focused on the field of metal pipe processing, adhering to the corporate mission of "becoming a global brand supplier of pipe cutting equipment! Changing the future with intelligent manufacturing", and winning market recognition with products and technology!
FAQ
Q1:How do install the machine and what services can you provide?
A1:We have prepared user manual, installation preparation guide and installation video. These documents will besent to you in advance and you can prepare according to them. After the machine arrives. we will set up an onlinegroup where our engineers will be available to guide you.
Q2:What is the delivery time for the machine?
A2:Fast delivery. The delivery time for most machine models is usually within 15-30 working days
Q3:How do you provide after-sales service?
A3:You need to confirm with our engineers in the group now what the problem is, and our engineers will check if theycan solve it by remote technical guidance.
Q4:Are the displayed prices final offers?A4: No, It is a price range. The final quotation depends on the buyer's requirements
Q5: I don't know which one is suitable for me?
A:Please tell me your
1) Your materials
2)Max size of your material
3) Max cut thickness
4) Popular cut thickness

---
