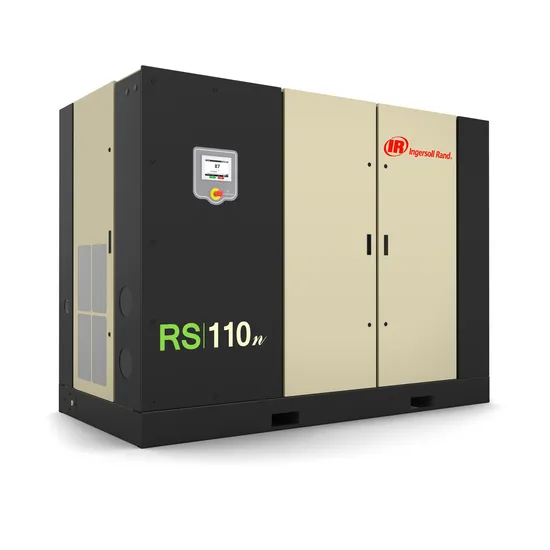

Ingersoll Rand RS 110kw High-Efficiency Screw Air Compressor

Product Description

Product Description
Next Generation R Series 90 - 110 kW Oil Flooded VSD Rotary Screw Compressors.
Ingersoll Rand works to keep you ahead of your competition with the Next Generation R-Series air compressors that boost productivity and lower total cost of ownership through industry leading energy efficiency, reliability and best-in-class performance. The integrated Helix™ Connected Platform leverages the latest in IIoT technology to deliver continuous real-time monitoring to enable maximum operational uptime. Our Advantages
Improved Efficiency and Air Flow: Best-in-class airend design features optimized rotor profile that delivers up to 18% improved efficiency and best-in-class airflow capacity.
Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals.
Remote Intelligent Control: XS-Series controller delivers increased control functionality through an intuitive user interface. The status of the compressor is continuously monitored and immediate action is taken if an abnormal operating condition occurs.
Minimized Energy Use: NEMA Premium® efficiency motor delivers significant energy savings. Additionally, the compressor meets DOE TSL2 efficiency requirements.
Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime.
Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime. Product Parameters

Model	Air Flow	Pressure	Power	Noise	Motor Voltage	Dimension	Weight	Electrical protection level	Controller
	m3/min	Mpa	KW	dB(A)	V/Hz/PH	(L*W*H)mm	Kg		Piece
RS30ie_A10	4.9	10	30	72-79	400/50/3	1947 L x 1152 W x 1609 H	1069	IP55	Xe-90
RS37ie_A10	6	10	37	72-79	400/50/3	1947 L x 1152 W x 1609 H	1124	IP55	Xe-90
RS45i_A10	7.7	10	45	72-79	400/50/3	2433L x 1250W x 2032H	1841	IP55	Xe-90
RS55i_A10	9.3	10	55	72-79	400/50/3	2433L x 1250W x 2032H	1936	IP55	Xe-90
RS75i_A10	13.0	10	75	72-79	400/50/3	2433L x 1250W x 2032H	1962	IP55	Xe-90
RS90ie_A10	16.4	10	90	72-79	400/50/3	2855 L x 1899 W x 2107 H	3270	IP55	Xe-90
RS110ie_A10	20.0	10	110	72-79	400/50/3	2855 L x 1899 W x 2107 H	3364	IP55	Xe-90
RS132ie_A10	23.8	10	132	72-79	400/50/3	2855 L x 1899 W x 2107 H	3646	IP55	Xe-90
RS160ie_A10	28.9	10	160	72-79	400/50/3	2855 L x 1899 W x 2107 H	4194	IP55	Xe-90
RS200i_A10	35.7	10	200	72-79	400/50/3	3752 L x 2150 W x 2504 H	6205	IP55	Xe-145
RS250i_A10	46.6	10	250	72-79	400/50/3	3752 L x 2150 W x 2504 H	7655	IP55	Xe-145
