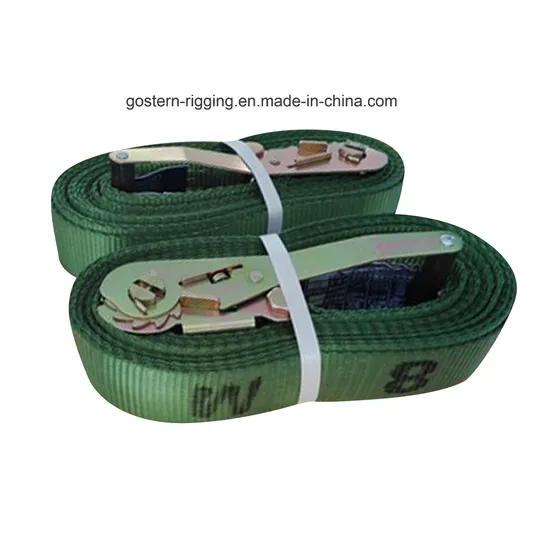

Polyester Ratchet Tie Down Strap with Buckles for Cargo Lashing

Product Description

Polyester Ratchet Tie Down Strap with Buckles for Cargo Lashing
Products Description
To know us
Gostern Rigging Co., Ltd.Is established in the year of 2001 in China.The company covers an area of 33000 square meters, more than 600 employees.It is a specialized slings company which can design, manufacture and market.
Our main products are steel wire ropes, wire rope slings, synthetic fiber belt slings, nylon braided ropes, chain slings, steel plate lifting clamps, metallurgy clamps, hanging beams, rigging accessories and so on.The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.The perfect performance has been highly appraised by Users.
Specifications of our products
Ratchet Tie Down

Specification	breaking load (KG)	width(mm)	A	B	C	D	weight(KG)
ZSR-015	1500	25	27	130	53	58	0.39
ZSR-03	3000	38	38	154	70	72	0.6
ZSR-05	5000	50	50	230	90	101	1.1
ZSR-08	8000	75	75	300	148	154	3.1

A:belt width B:arm length C:axe length D:handle length


B.S.10000KG(LC5000DAN),webbing width:75mm, short part 0.5m+long part 9.5m, with 3" claw hook(or double j hook or flat hook) B.S.5000kg(LC2500DAN),webbing width: 50mm, short part 0.5m+long part 9.5m(9m,8.5m,7.5m,5.5m) with 2" claw hook(or double j hook or flat hook) webbing B.S.7.5t according to EN 12195-2 standard or webbing B.S. 6t B.S.4000kg(LC2000DAN),webbing width: 50mm, short part 0.5m+long part 9.5m(9m,8.5m,7.5m,5.5m) with 2" claw hook(or double j hook or flat hook) webbing B.S.6t according to EN 12195-2 standard or webbing B.S. 5t B.S.3000kg(LC1500DAN),webbing width: 38mm, short part 0.5m+long part 5.5m with 1.5" claw hook(or double j hook ) webbing B.S.4.5t according to EN 12195-2 standard.
B.S.2000kg(LC1000DAN),webbing width: 35mm, short part 0.5m+long part 5.5m with 1.5" claw hook(or double j hook ) webbing B.S.3t B.S.800kg(LC400DAN),webbing width: 25mm, short part 0.5m+long part 3.5m with 1" double j hook or single j hook webbing B.S.1000KG B.S.500kg(LC250DAN),webbing width: 25mm, short part 0.5m+long part 3.5m with 1" double j hook or single j hook webbing B.S.750KG
Characteristics of the slings:
Webbing sling is produced from top quality synthetic fibre (100% PES), nylon, and polypropylene fiber by advanced international level of weaving technology and equipment in various sewing methods, they are mainly used for various occasions of hoisting, the products comply with the standards GB/T8521-1997.
The slings have the following advantages: Damping, non-corrosive, non-conductive, non-aging and without Mars in the explosive environment.
The section is changing with the shape of surface, in itself, it is very soft and flexible. The slings can fit snugly on the hoisted goods, and the goods will not be damaged. At the same time, it can lessen the possibility of wounding caused by rebound.
According to customer's requirement, the safety factor of sling has 4: 1, 5: 1, 6: 1, 7: 1, 8: 1, its load range is from 0.5t to 100t. Which is produced according to International stanard, for color and load capacity.
Useful suggestions for the correct use of the sling:
The slings should avoid the harm of the sharp instrument when lifting the goods.
You can add the leather or polyester on the outer layer of the slings to protect it when lifting the goods.
Never use slings with damages or defects.
Only use slings with clear identifications.
Forbidden to tie a knot of the sling or link with a knot. You should link the sling with the right connecting piece.
Only use slings with clear identifications.
Before use, check working load limit, length and working position.
Never use slings under -40° C Or more than 100° C.
Elongation rate < 3% at working load < 10% at breaking load.

Details
What we achieved
we have achieved many awards both domestic and worldwide.Pls see our achievements as bellow :



Plant View

Our Difference

SATISFACTORY SERVICE
- Leatime 8-15 days
- 3 years warranty
- Varied packaging choice
-we welcome you to have a factory aTour
Experience
- Long history in the sling area for almost 20 years
-sales volume increase to over 40 million per year
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-5 days, mass production time needs 1-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We offer you the ideal products and price .
Thirdly we strike the deal if everything goes well.
Fourthly We arrange the production.
Q6. Is it OK to print my logo and change package?
A: Yes. Please inform us formally before our production.we need comfirm with you the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. We will do several inspection before we send to you.

---
