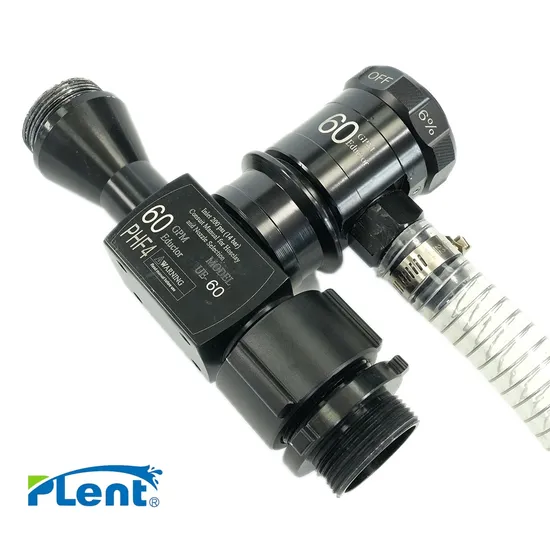

Plent 360lpm Firefighting in-Line Foam Eductor for Fuel Storage Area

Product Description

Product Description An Eductor is one type of equipment that introduces foam concentrate into water stream. In this device, water enters an inlet and moves through a tapered section. Then it moves through a small orifice and into a bigger chamber to create a low-pressure area within the large chamber. A metering valve opens and the higher atmospheric pressure outside of the large chamber pushes your concentrate into the chamber. This concentrate then mixes with the water exiting from the lower pressure area, or Venturi.
Plent 2.5" in-line foam eductor is capable to provide 5 types of foam concentrate's ratio. Featured with competitive price. Please see more info in below chart.
Our Advantages
Main Application Oil & Gas Fuel Storage Area Fire & Rescue Mining Sea Conditions Chemical Industry
For More info about Ningbo Plent 2.5" in-Line Foam Eductor products, feel free to contact us any time. Product Parameters

Product	2.5" in-Line Foam Eductor
Model#	PHF-SX
Flow Rate	60GPM / 95GPM / 125GPM 230LPM /360LPM / 475LPM
Working Pressure	0.6~1.4Mpa (6~14 bar/85psi~205psi)
Foam Ratio	0.25% / 0.5% / 1% / 3% / 6%
Inlet (choices)	1"/ 2"/ 2.5"
Main Components	Body (Hard Anodized Aluminum Alloy) Pick up Hose (SS) Pick up Hose (Rubber) Coupling (Aluminum)

Detailed Photos
Cannon in Warehouse and Testing Building:
Fire fighting Exhibition in Beijing
Our Company Since the company was founded in 1996, SXFIREPRO has evolved and grown from a small factory in the yard with the limited capacity to only make couplings, to a sophisticated and leading factory, that now spans over 35000 square meters and employs over 60 skilled engineers, craftsmen, and mechanics - a figure that continues to grow. As one of the family-owned fire equipment manufacturers in China, SXFIREPRO continues to instill the tradition of product excellence, acute customer care, and superior service.
Over the past few years, SXFIREPRO has pushed and expanded its product line to fire monitors, fire nozzles, bladder foam tanks,foam concentrate,fire robots, etc., Unlike most fire equipment manufacturers, sxfirepro also delivers on the meaning of custom-crafted appatatus. Working side-by-side with each customer, sxfirepro will construct your vehicle based on your specific department's needs, The Shengxin team - from the best engineers and draftsmen to highly skilled mechanics and craftsmen will always give you a surprise on the quality. An sxfirepro product is as unique as our customers.
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD20 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. Or it is 15 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid prior shipment.
Q: what is your main market?
A: ,Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo Print and package desiged based in our MOQ.

---
