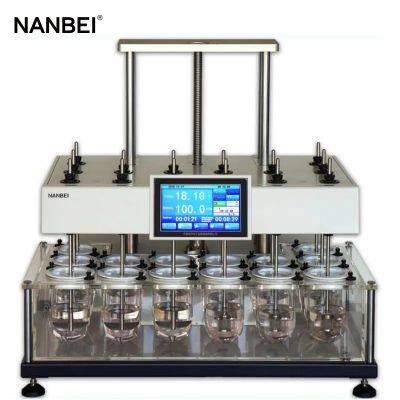

Lab tablet testing equipment 14 vessels tablet dissolution tester
Dissolution tester characteristics:
1. RC-14DF adopts a high-resolution color touch screen, which is convenient and fast to operate, precise to control,
and friendly to human-computer interaction interface. Users can enjoy intelligent operation according to the screen
prompts.
2. The RC-14DF dissolution instrument adopts a high head structure design form; The space between the lower
edge of the machine head and the water tank is larger than that of conventional models. It is conducive to
medication administration, sampling, or fluid replacement operations, and the retrieval and placement of the
dissolution cup is also easy and convenient.
3. System permission management: multi-level, multi user (login method: username + password).
4. Audit tracking records: Multiple content and parameters for long-term preservation.
5. The design of no gap between the dissolution cup and the water tank ensures automatic center positioning.
Eliminate system errors.
6. The instrument provides USB real-time information download and massive test data storage functions. Completely
save all data of the experimental process in Excel format.
7. The instrument provides a standard 232 output interface for external printers. Print real-time test data such as
time, temperature, and speed during the test process.
8.The instrument provides two operating interface in Chinese and English, with one click switching.
9. The instrument provides a "message board" function, which can be used to write and save text prompts or
important notes for the operator taking over the shift.
10. The instrument provides timed shutdown and timed automatic preheating functions.
11. The instrument provides editing functions for Chinese characters, numbers, and English. It can provide data such，
as test number, sample name, test parameters, and test method for printing output.
12. It has self check and automatic protection functions, and can provide various fault alarm prompts and secondary
overheating protection.
13. The RC-14DF has a built-in head electric lifting structure, which not only has a beautiful appearance, but also
avoids oxidation and corrosion of the lifting machinery when exposed to the air, and reduces movement noise.
14. A lid for the dissolution cup to prevent evaporation of the dissolution medium.
15. The instrument complies with the 2020 edition of the Chinese Pharmacopoeia, and its main technical indicators
also comply with the relevant regulations of USP, BP, and JP.
Specification
Product Name
| 14 Vessels Intelligent Dissolution Tester
|
Standard configuration
| 14 paddles and 14 cups
|
Perpendicularity of basket paddle (shaft)
| deviation from vertical direction ≤ 0.5 °
|
Perpendicularity of the dissolution cup
| deviation from the vertical direction ≤ 1 °
|
Coaxiality between the dissolution cup and the basket (paddle) axis
| deviation from the axis ≤ 1.0mm
|
basket (paddle) axis swing
| swing ≤ 0.3mm
|
Basket swing
| swing ≤ 0.5mm
|
Depth of basket (paddle)
| 25 ± 1mm
|
Basket (propeller) shaft speed error
| ＜± 4%
|
Medium temperature in each dissolution cup
| 37℃± 0.3℃
|
Vibration
| ≤ 0.1mil
|
Speed range
| 25-250 rpm
|
peed accuracy resolution
| 0.1 rpm
|
Temperature adjustment range of water bath
| 5℃ (room temperature) -50℃
|
Printing time interval setting
| ≤ 1-60 minutes, any choice
|
Continuous working time
| 100h
|
Electric heating power
| 1800W
|
Net weight
| 90Kg
|
External dimensions
| 910*650*650mm(L*W*H)
|
>>
