Domestic 300L-3000L 5000L Vacuum Tube Solar Water Heater

Product Description

domestic 300l-3000L 5000L vacuum tube solar water heater
Sola Solar Pump-free household solar water heater is Open water tank for heat storage, closed coil for heat exchange. Sola Solar 20 second rapid heat exchange technology is adopted, The hot water is quickly ready to use, and the water quality is fresh. Moreover, the hot water pressure comes from the municipal cold water pressure, which matches with the cold water, so there is no sudden cold and hot, easy to adjust the water temperature. Sola solar pressurized hot water heater is with surging pressure, the water volume is sufficient, and bring you good use experience.
Product Parameters

Product name	Vacuum tube type solar water heater
model	PFSLY-300/25-5818-P
Types of solar water heaters	Open tank pressurized solar water heater
collector tube	All glass solar vacuum tubes
Absorbent coating	interference coating
The outer diameter of the collector tube	Φ58mm
collector tube length	1800mm
Inner tank material	0.4 mm Φ380mm SUS304 stainless steel
Outer tank material	0.4mm Φ480mm color galvanized steel plate
Insulation	50mm polyurethane foam
Cold/hot water port	DN20, 25, 32, 50
Requirements for roof loads	100-120kg/m2
Collecting area	3.6/m2
collector inclination	5°~30°
Electric heating (option)	220V50Hz/110v60hz,1500W

Our Advantages Sola Solar water heater is different from others.
No.1
The end cover of the solar water tank adopts flange connection, which can be opened and maintained at any time, making it safer and more convenient to use.
No.2
The solar energy solar heater adopts a modular design, and the water tank can be expanded to meet the needs of customers with large water consumption and many water usage points.
No.3
The rapid heat exchange technology developed by Sola Solar, cold water flows through the stainless steel bellows heat exchanger for 20 seconds to quickly turn into hot water. The water quality is fresh, and it can be used as kitchen water.

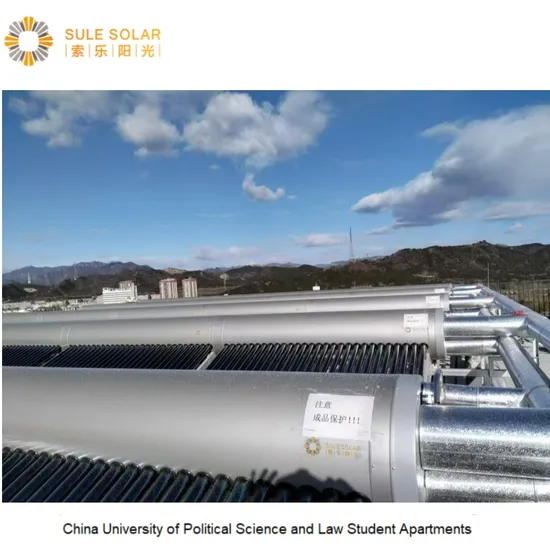

Application show
We have own design and technolgy team tos support OEM and ODM service , we can customize the solar hot water heating system as your requirement and projects and supply one-stop service for you. The details project introduction for you:
Company Profile
Work room
Our team: technology reaserch and development team, sales department teams.
Our visits
More information about SOLA SOLAR
1. What can you buy from us?
Solar Water Heater, Solar water system. Solar collector.
2. What is your Delivery Time?
LCL order/Sample order: 3-7 days.
Full container order:10-15 days.
3. What is your warranty?
3 years after delivery;
4. Can you accept OEM?
YES. will do OEM Based on your requirements.
5. What is your MOQ?
1 set.
6. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
7. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C;
Language Spoken: English, Chinese.

---
