| US$60,000.00-90,000.00 | 1 SET (MOQ) |

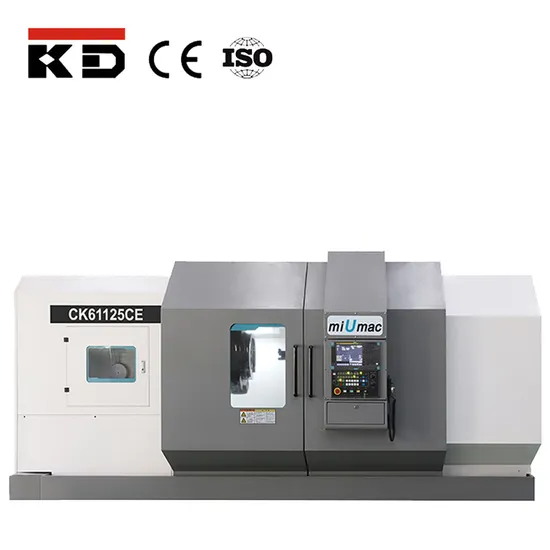

ITEMS | CK61100C | CK61125C | |
Max. swing over bed | Ø 1000 mm | Ø 1250mm | |
Max. swing over carriage | Ø 620 mm | Ø 870mm | |
Width of bed | 755 mm | ||
Maximum length of workpiece | 1.5/2/3/4/5/6/8m | ||
Max. turning length | 1.3/1.8/2.8/3.8/4.8/5.8/7.8m | ||
Max. weight between centers | 5000 kg | ||
Spindle nose | A2-15 | ||
Spindle bore | Ø 130 mm | ||
Cone hole diameter and taper of spindle hole | Metric Ø 140 1: 20 | ||
Steps of spindle speed(Manual) | 24(forward) 12(reverse) | ||
Range of spindle spec | 2.5~250 r/min | ||
Rapid feed for Z axis | 8m/min | ||
Rapid feed for X axis | 5 m/min | ||
Max. travel of Axis X | 600 mm | ||
Max. Input | 0.001 mm | ||
Tool post stations | 4 station | ||
Tool cross section | 40× 40 mm | ||
External diameter of tailstock sleeve | Ø 160 mm | ||
Taper of bore of tailstock sleeve | Metric Ø 80 | ||
Max. traverse of tailstock sleeve | 300 mm | ||
X/Z motor torque | 33/37Nm | ||
Spindle motor power | 22KW | ||
Power of cooling pump | 0.25KW | ||
Overall dimensions(L× W× H) | 6100× 2270× 2230mm | 6100× 2270× 2300mm | |
Net weight | 11500kg | 12300kg | |
Note: For each additional machine length of 1m, there will be additional net weight of 1100kg | |||
