Hydraulic Swing Beam Shearing Machine

Product Description

Product Description

QC12Y Hydraulic Swing Beam Shearing Machine ( Estun E21 NC Controller ), cutting shearing

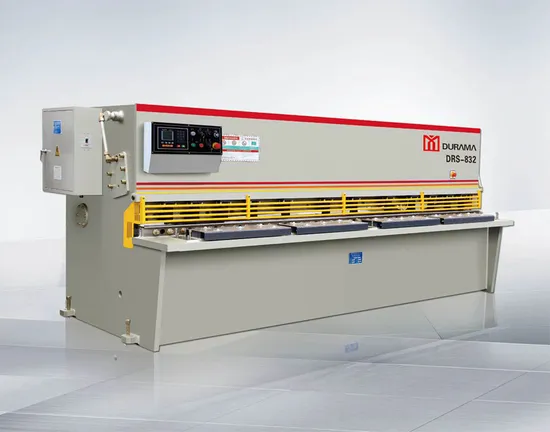

Hydraulic Swing Beam Shearing Machine With E21 NC
The model of this hydraulic swing beam shearing machine is DRS series ( QC12Y-series ),Hydraulically driven blade holder, retracted by cylinder accumulator, convenient, reliable and elegant;E21 control the backgauge position and count the cutting time.
Basic features for DRS series hydraulic swing beam shearing machine
• Steel welded structure with stress-free for reliable performance
• Hydraulically driven blade holder, retracted by cylinder accumulator, convenient, reliable and elegant
• E21 control the backgauge position and count the cutting time
• Motorized back gauge installed with ball screw and slick rod for high precision
• Indicator-based adjustment of blades clearance is easy, convenient and swift
• Top blade with 2 cutting edges bottom blade with 4 cutting edges to provide a longer life span and reducing down time
• Blades with high tensile strength for cutting carbon steel and stainless steel
• Full or short stroke adjustment of blade holder to achieve high efficiency and productivity
• Shadow line lighting,
• Foot switch for operation with emergency stop
• Transfer balls on table and front support arms for easy feeding
• Cutomized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc
DRS-series hydraulic swing beam shearing machine optional elements
• Cut piece sliding slope
• Light curtain for fingers safety
• Wind turbine coolant
General optional elements for DRS series hydraulic swing beam shearing machine
Hydraulics, Electrics, Oil pump, CNC controllers
Product Parameters

Model	Cutting thickness (mm)	Cutting width (mm)	Shearing angle	Strokes (min-1)	Banggauge range(mm)	Main Motor (kw)	Weight (kg)	Overall Dimensions L×W×H(mm)
DRS-425	4	2500	1°30'	≥18	20-600	7.5	4,800	3040×1610×1650
DRS-432	4	3200	1°30'	≥14	20-600	7.5	6,400	3840×1610×1650
DRS-440	4	4000	1°30'	≥10	20-600	7.5	7,900	4640×1705×1700
DRS-450	4	5000	1°30'	≥10	20-600	7.5	16,000	5786×2200×2160
DRS-625	6	2500	1°30'	≥18	20-600	7.5	5,500	3040×1610×1650
DRS-632	6	3200	1°30'	≥14	20-600	7.5	6,600	3840×16100×1650
DRS-640	6	4000	1°30'	≥10	20-600	11	8,500	4640×1705×1700
DRS-650	6	5000	1°30'	≥10	20-750	11	16,000	5786×2200×2060
DRS-660	6	6000	1°30'	≥10	20-800	11	17,500	6730×2090×2180
DRS-825	8	2500	1°30'	≥14	20-600	11	6,000	3040×1610×1650
DRS-832	8	3200	1°30'	≥10	20-600	11	7,000	3840×1610×1650
DRS-840	8	4000	1°30'	≥8	20-600	11	9,200	4680×1705×1700
DRS-850	8	5000	1°30'	≥7	20-600	15	21,000	5786×2252×2310
DRS-832	8	6000	1°30'	≥5	20-750	15	28,000	6900×2570×2280
DRS-1025	10	2500	2°	≥11	20-750	15	8,500	3350×2050×1950
DRS-1032	10	3200	1°48'	≥10	20-600	15	9,500	4050×2050×1950
DRS-1040	10	4000	2°	≥12	20-600	18.5	14,500	4800×2200×2100
DRS-1225	12	2500	1°40'	≥11	20-800	15	8,500	3350×2050×1950
DRS-1232	12	3200	1°40'	≥10	20-600	18.5	12,500	4020×2050×2230
DRS-1240	12	4000	1°40'	≥8	20-800	18.5	18,000	4820×2400×2300
DRS-1625	16	2500	2°20'	≥8	20-800	18.5	11,500	3445×2477×1880
DRS-1632	16	3200	2°20'	≥7	20-800	18.5	13,800	3945×2477×2035
DRS-1640	16	4000	2°20'	≥5	20-800	18.5	15,300	4745×2477×2035
DRS-2025	20	2500	2°30'	≥6	20-800	30	16,000	3440×2088×2570
DRS-2032	20	3200	2°30'	≥5	30-800	30	18,000	4150×2350×2710
DRS-2040	20	4000	2°30'	≥5	30-1000	37	21,000	4920×2400×2730

Company Information:
We are DURAMA group company, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA group company supplies the most comprehensive range of machines and spare parts available today.
With continued investment and an unrivaled reputation for quality and service, DURAMA group company is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA group company is always trying best to supply durable machines and spare parts, and timeproof service to our customers.
How to reach our factory:
Our factory is about 260 km far away from Shanghai air port, and 8 km far away from Nanjing air port . You can come here by fast train or by plane to Nanjing. We will pick you up from the train station or air port.
Our Services:
1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 days
If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!

---
