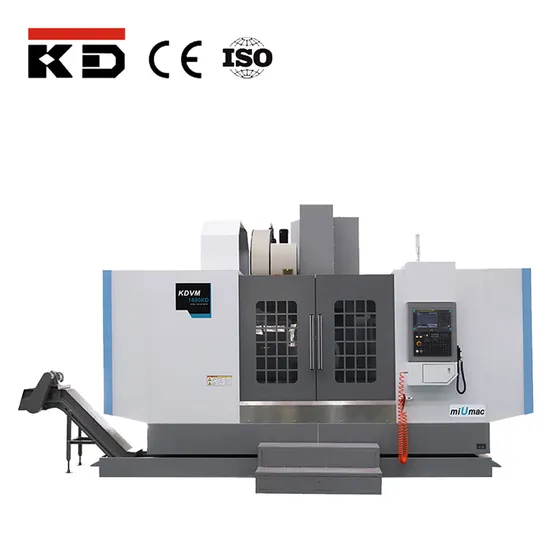

| MODELS | KDVM1890L |
| TRAVEL | |
| X axis | 1800mm |
| Y axis | 900mm |
| Z axis | 700mm |
| Spindle center to column | 1080mm |
| Spindle end to table | 180-880mm |
| TABLE | |
| Table size | 2000×900mm |
| T-slot(width×number×space) | 22mm×5×165mm |
| Max. table loading | 1900kg |
| SPINDLE | |
| Taper bore of spindle | BT50/φ190 |
| Spindle power | 15/18.5kw |
| Spindle speed | 6000rpm |
| FEED | |
| X/Y/Z fast travel speed | 20/20/20min |
| Torque axis motors | 36Nm |
| ATC | |
| Tool number | 24 |
| Time (tool-tool) | 4s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.02/0.01/0.01mm |
| Repeatability positioning accuracy for X/Y/Z | ≤0.012/0.008/0.008mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 4640x3450x3100mm |
| Net weight | 16000kg |
