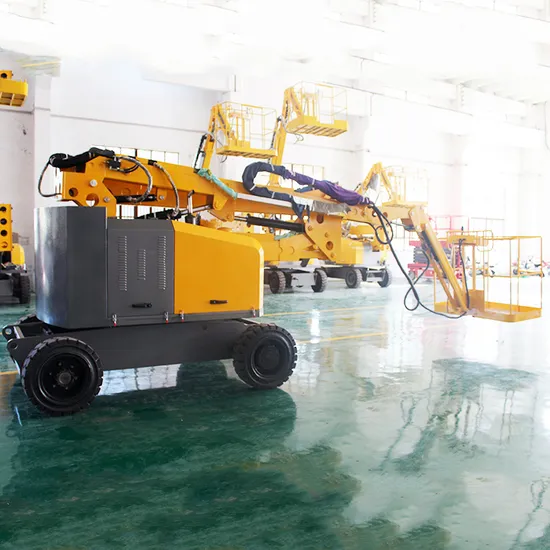

Hot Selling Lifting Equipment High Efficiency Articulated Articulated Boom Diesel Lift Boom Lift Table

US$40,000.00
1-9 Pieces
US$30,000.00
10-19 Pieces
US$2,000.00
20+ Pieces

Basic Info.

Model NO.
ZMQBPT14C Lifting Platform
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Telescoping Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Insulating
Certification
CE, ISO 9001
"Overall Length (Folded) "
7.0m
Table Size
1.6*0.8m
Number of Working Arms
5 Sections
" Travelling Speed (Folded) "
4km/H
Mechanical Arm Swing
≤0.5%
Forearm Luffing Angle
130°
Weight
6596kg
Voltage
24V
Max. Working Height
14m
Max. Platform Height
12m
Max. Operating Radius
8m
Max. Spanning Height
6.6m
Driving Form
4X2X2
Engine Fuel Tank Volume
40L
Hydraulic Oil Tank Volume
120L
Transport Package
Wooden
Specification
Lifting Platform
Trademark
zhongmei
Origin
China
Production Capacity
1000 Sets Per Month

Packaging & Delivery

Package Size
410.00cm * 170.00cm * 270.00cm
Package Gross Weight
1000.000kg

Product Description


Product Description
Aerial working platforms make many difficult and dangerous jobs easier and are especially suitable for a larger range of continuous work at high altitude in airport terminals, stations, wharves, shopping malls, sports stadiums, community properties, factories, mines and workshops. This kind of aerial lifting platform is characterized by compactness, flexibility and convenience. A self-propelled aerial working platform can be used instead of scaffolding to reach the height you need and solve your hard works. Operated by only one person, the machine can complete lifting, forward, backward, steering, slewing and other actions, which greatly improves work efficiency.zmwm22
Product Parameters
Overall dimensions ZMQBPT10D ZMQBPT12D ZMQBPT14D ZMQBPT16D ZMQBPT18D ZMQBPT20D ZMQBPT22D
Overall length (folded) 5.5m 6.3m 7.0m 7.18m 8.35m 8.86m 9.9m
Overall length (folded) 1.65m 1.78m 1.93m 2.18m 2.2m 2.25m 2.4m
Overall height (folded) 2.35m 2.35m 2.35m 2.53m 2.53m 2.53m 2.9m
Table size 1.6*0.8m 1.6*0.8m 1.6*0.8m 1.6*0.8m 1.8*0.8m 1.8*0.8m 1.8*0.8m
Number of working arms 5 sections 5 sections 5 sections 5 sections 5 sections 5 sections 5 sections
Travelling speed (folded) 4km/h 4km/h 4km/h 4km/h 4km/h 4km/h 4km/h
Lifting Travelling speed (Unfolded) 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Mechanical arm swing ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5% ≤0.5%
forearm luffing angle 130° 130° 130° 130° 130° 130° 130°
Min.turning radius Outer wheel 4.4m Inner wheel 2.25m Outer wheel 4.4m Inner wheel 2.25m Outer wheel 4.6m Inner wheel 2.35m Outer wheel 4.6m Inner wheel 2.35m Outer wheel 4.55m Inner wheel 1.85m Outer wheel 5.2m Inner wheel 2.2m Outer wheel 5.2m Inner wheel 2.2m
Height of the worktable from the floor (folded) 620mm 630mm 300mm 200mm 90mm 100mm -200mm
wheelbases 1907mm 1907mm 2017mm 2017mm 2100mm 2540mm 2540mm
track width 1440mm 1440mm 1550mm 1550mm 1800mm 1830mm 1830mm
weight 4900kg 5800kg 6596kg 6900kg 8550kg 9200kg 11000kg
Voltage 24v 24v 24v 24v 24v 24v 24v
Tires specification 28X9-15 Solid Tire 28X9-15 Solid Tire 28X9-15 Solid Tire 28X9-15 Solid Tire 28X9-15 Solid Tire 28X9-15 Solid Tire 28X9-15 Solid Tire
Tires size 580mm 580mm 670mm 670mm 800mm 800mm 1000mm
Colour yellow/customized yellow/customized yellow/customized yellow/customized yellow/customized yellow/customized yellow/customized
Max. working height 10m 12m 14m 16m 18m 20m 22m
Max. platform height 8m 10m 12m 14m 16m 18m 20m
Max. operating radius 5.8m 6.9m 8m 8.9m 10.6m 11.7m 12.2m
Max. spanning height 5.1m 5.7m 6.6m 7.6m 8.25m 8.55m 9.45m
Max. permissible chassis angle 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3° 1.5°/3°
Driving form 4x2x2 4x2x2 4x2x2 4x2x2 4x2x2 4x2x2 4x2x2
Max. Climbing 25% 25% 25% 25% 25% 25% 25%
worktable load 230kg 230kg 230kg 230kg 230kg 230kg 230kg
Max. number persons carried Two people Two people Two people Two people Two people Two people Two people
worktable rtation angle (optional) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm ) ±80° (overall length will increase 200mm )
wind rating Level 3-4 Level 3-4 Level 3-4 Level 3-4 Level 3-4 Level 3-4 Level 3-4
Rotary angle of rotary table 355°discontinuous 355°discontinuous 355°discontinuous 355°discontinuous 355°discontinuous 355°discontinuous 355°discontinuous
Type of power rechargeable battery rechargeable battery rechargeable battery rechargeable battery rechargeable battery rechargeable battery rechargeable battery
Travel drive 5.5kw 5.5kw 6.3kw 6.3kw 6.5 7.5kw 7.5kw
Lifting drive 4kw 4kw 4kw 4kw 5.5kw 5.5kw 5.5kw
Battery Voltage 2v 2v 2v 2v 2v 2v 2v
battery capacity 250ah 250ah 250ah 250ah 330ah 330ah 400ah
Battery Charger 48v35A 48v35A 48v35A 48v/40A 48v/40A 48v/45A 48v/45A
Number of batteries 24 pieces 24 pieces 24 pieces 24 pieces 24 pieces 24 pieces 24 pieces
Hydraulic oil tank volume 60L 60L 60L 60L 80L 80L 80L
