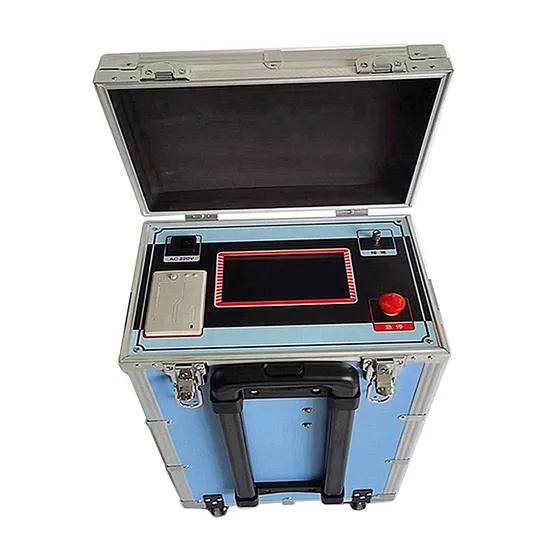

Integrated 30kv Ultra Low Frequency High Voltage Set Generator Electronic Vlf Test

Product Description

Product overview: The ultra-low frequency insulation withstand voltage test is actually an alternative method to the power frequency withstand voltage test. When conducting power frequency withstand voltage tests on large and medium-sized generators, motors, power cables, and other test samples, large capacity test transformers or resonant transformers are required due to the large capacitance of their insulation layers. These huge devices are not only bulky and expensive, but also very inconvenient to use. In order to solve this contradiction, the international community generally adopts the method of reducing the test frequency, thereby reducing the capacity of the test power supply. From years of theoretical and practical experience both domestically and internationally, it has been proven that replacing the power frequency withstand voltage test with a 0.1Hz ultra-low frequency withstand voltage test not only achieves the same equivalence, but also greatly reduces the size and weight of the equipment. In theory, the capacity is about one fifth of the power frequency, and the operation is simple. This is the main reason why this method is widely adopted. The new generation of integrated 0.1Hz ultra-low frequency high voltage generator developed by our company adopts the latest power electronic components and ARM7 microcontroller technology, further reducing the size and weight of the equipment. It is easy to operate and has more stable performance, overcoming the disadvantages of short service life, high failure rate, and large volume of the first generation mechanical booster. Through years of practice, feedback from a large number of users has shown that this series of ultra-low frequency high-voltage technology is leading in the country and has the highest cost-effectiveness!
Feature and Functions:
1. Advanced technology: adopting digital frequency conversion technology, microcomputer control, fully automated testing processes such as boosting, lowering, measurement, and protection.
2. Easy to operate: simple wiring and convenient operation.
3. Comprehensive protection: Multiple protections (overvoltage protection, high and low voltage side overcurrent protection), quick action (action time ≤ 10ms), instrument safety and reliability.
4. Safe and reliable: The controller and high-voltage generator are connected at low voltage, with photoelectric control, ensuring safe and reliable use.
5. Adopting high and low voltage closed-loop negative feedback control circuit, the output has no capacitance rise effect.
6. Complete configuration: capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.
7. Large testing range: Multiple frequency options of 0.1Hz, 0.05Hz, and 0.02Hz provide a wide testing range.
8. Small size and light weight: very conducive to outdoor operations.

Technical parameters:

Model	JHIVLF-30KV
Rated voltage	30KV
Measurement accuracy	3%
Voltage waveform distortion	less than 5%
Voltage positive and negative peak error	less than 3%
Output fruquency	0.1HZ,0.05HZ,0.02HZ
Display	7 inch large screen touch
Protection time	less than 10ms
Configuration	capacitive touch screen

FAQ
1. Is your company a sales company or a manufacturer?
Our company is an industrial and trade enterprise, with our own factory and lab, self-produced and self-sold. We were founded in 2013 and have 12 years of production experience, which has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time?
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is in well package with fast shipping.
4. What are the after-sales terms?
We offer free consulting service, 1 year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
6.Is customization supported?
We support customization in language use according to your requirement if the quantity ordered reaches.

---
