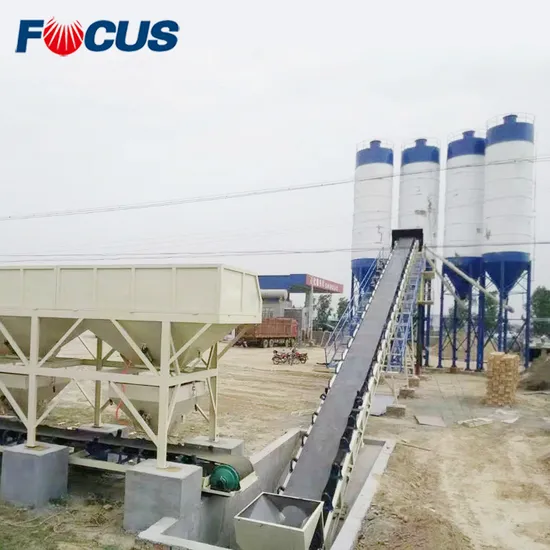

60cbm/H Ready Mix Concrete Batching Plant with Belt Conveyor

Product Description

60cbm/h Ready Mix Concrete Batching Plant With Belt Conveyor
Why would our clients choose FOCUS Ready Mix Concrete Batching Plant ?
On the basis of combining advantages of various foreign concrete mixing plant and advanced technology, FOCUS HZS concrete mixing plant adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining.
What are the main features of FOCUS concrete mixing plant?
1. Adopting twin-shaft compulsory concrete mixer, FOCUS concrete mixing plant mixes evenly and rapidly, achieving good mixing effect for all kinds of dry, semi-dry and plastic concrete;
2. Compact-structured planetary gear was adopted in our concrete mixing plant to ensure smooth, speedy and efficient transmission;
3. Concrete batcher can be designed as underground, partially underground or fully-above ground, 3-6 hoppers are pneumatically controlled by computer with fast and accurate instruct, whole job can be done in separate or accumulative models;
4. Aggregate belt conveyor is truss-framed for easy assembly, inclination angle is normally less than 20 degrees, however, it can be up to 45°by adopting through(groovy) belt when the ground area is limited for the concrete mixing plants;
5. Three-point suspension sensors equipped to guarantee accurate and fast powder and liquid weighing;
6. Dust collection system mainly aims at dealing with dust generated in the process of loading the mixer and pumping powder into the powder tank, the whole mixing plant is all in closed state;
7. UPS, stable performance Siemens PLC, high speed and precision weighing unit module combined with our professional control and monitoring software;
8. Full automatic and easy operated production process of material measurement, transfer, mixing and discharging.
9. Heating system and ice plant could be adopted into this concrete plant in severely cold and hot environment.
FOCUS Belt Conveyor Series Ready Mix Concrete Batching Plant Technical Parameters

Model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m³/h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m³)	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Aggregate weighing accuracy(%)	(0-3000)kg±2%	(0-4000)kg±2%	(0-4500)kg±2%	(0-4500)kg±2%	(0-6000)kg±2%
Cement weighing accuracy(%)	(0-600)kg±1%	(0-1000)kg±1%	(0-1200)kg±1%	(0-1800)kg±1%	(0-2400)kg±1%
Water weighing accuracy(%)	(0-400)kg±1%	(0-400)kg±1%	(0-600)kg±1%	(0-800)kg±1%	(0-1000)kg±1%
Fly ash weighing accuracy(%)	(0-400)kg±1%	(0-400)kg±1%	(0-600)kg±1%	(0-800)kg±1%	(0-700)kg±1%
Additive weighing accuracy(%)	(0-40)kg±1%	(0-40)kg±1%	(0-50)kg±1%	(0-50)kg±1%	(0-120)kg±1%
Discharge height(m)	3.8-4.2
Max. aggregate dia.(mm)	80-100
Cement silo and screw conveyor	On request
Total weight (ton)	46	60	71	87	112
Overall dimension(LxWxH)(m)	33.8x14.8x19.4	38x16x19.4	44x18x19.4	58.5x23.5x22	60x25x22

Each second you are paying visits to our webpage, our Ready Mix Concrete Batching Plant are being purchased, installed and operated all over the world
Thanks for visiting, by the time you are paying attention to us, our Ready Mix Concrete Batching Plant are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.
60cbm/h Ready Mix Concrete Batching Plant With Belt Conveyor
Specification:
1.Competitive price & high quality
2.Good after-sale service
3.ISO&CE certified with 1 year warranty
4.Reliable perfoemance
For more information please visit us @ micfocus.en.made-in-china.com

---
