US$0.80-1.10
|
100 kg
(MOQ)
|
Basic Info.
Usage
Supermarket, Industrial, Warehouse Rack
Structure
Gravity Pallet Racking
Serviceability
Common Use
Color
Blue / Orange or Customized
Surface Treatment
Power Coating
Certification
ISO9001/14001/10012/CE
Feature
Corrosion Protection
Function
Large Load Capacity Warehouse Storage
Remarks
Please Talk to Customer Servishelf About More Deta
Design
CAD Drawing Professional
Transport Package
Packed by Wooden Bars, Crates, Metal Stripes, Film
Production Capacity
6000tons/Month
Product Description

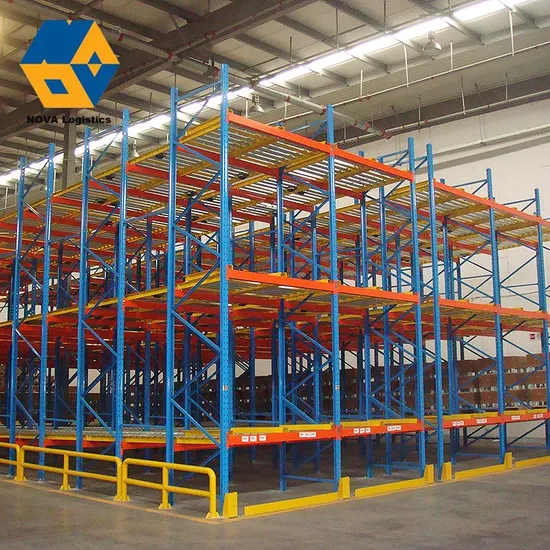

Product Parameters Gravity Pallet Racking
Features:
1) Using roller rail system or pallets with roller and the influence of gravity,
First in and first out principle for the goods is implemented
2) Used for storing a large number of goods of the same kind
3) Ensures the full space utilization
Heavy-duty pallet racks are a suitable and economical storage solution:
1. All the layers can be fixed at any height only if it's times of 75mm, the user will adjust the different heights for various pallet storage;
2. We supply quite big sections of upright to suit special needs;
3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
4. Epoxy powder coated and galvanized surface treatment to prevent corruption;
5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer
| Frame | Height (2-13m) | Depth (600-1,400mm) |
| Upright section: 80x60; 90 x 70; 100 x 65; 120 x87mm |
| Thickness: 2.0/2.3/2.5/3.0mm |
| Beam | Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm |
| Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm |
| Thickness: 1.4--1.5mm |
| Load capacity | 1-4Tons/Layer |
| Others | Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing: stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 3000T/month - Main market: exported more than 40countries, such as AU, PH, SG, UK, INDIA and etc. - Available in various colors/specifications/sizes |
>>
