9 Axis CNC High Precision and Fast Speed Wire Bending Machine

Product Description

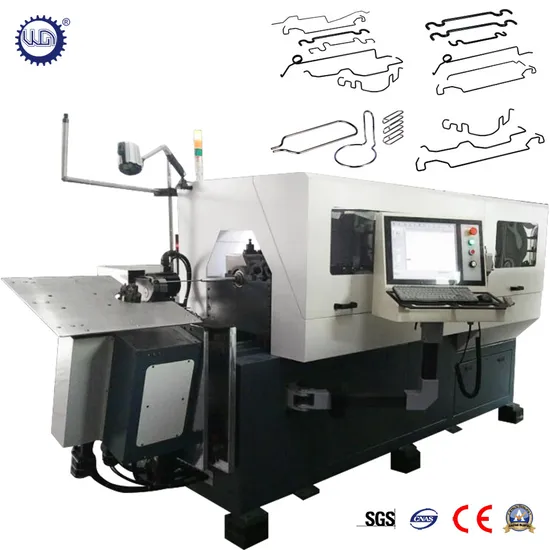

2023High quality 3D CNC 9 Axis Wire Bending Machine
CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1)Auto Industry area 2)Metal wire industry
3)Display table and cargo shelf 4)Furniture and Kitchen
5)Hardware industry 6)Mattress, Sofa spring area
7)Architecture area 8)Hardware Artcraft
Technical Paramter

Model	GT-WB-100-9A	GT-WB-100-8A	GT-WB-80-8A	GT-WB-70-8A	GT-WB-70-7A	GT-WB-60-8A	GT-WB-60-7A
Wire size	4.0-10.0mm	4.0-10.0mm	3.0-8.0mm	2.0-7.0mm	2.0-7.0mm	2.0-6.0mm	2.0-6.0mm
Axis	9	8	8	8	7	8	7
wire feeding value (mm)	Min.0.01	Min.0.01	Min.0.01	Min.0.01	Min.0.01	Min.0.01	Min.0.01
Feeding length number	3pairs/	3pairs/	3 pairs/	3pairs/	3 pairs/	2 pairs/	2pairs/
Wire turning angle	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Platform Lifting Height	+25 -120mm	+25 -120mm	+25 -120mm	+25 -120mm	+50 -170mm	+50 -170mm	+50 -170mm
twisting head lift height	+20 -180mm	+20 -180mm Left	+20 -180mm Left	+20 -180mm Left	+20 -100mm Left	+20 -100mm Left	+20 -100mm Left
left to right moving range	Left :100mm Right :50mm	:100mm Right :50mm	:100mm Right :50mm	:80mm Right :80mm	:80mm Right :80mm	:80mm Right :80mm	:80mm Right :80mm
Total output power of servo motors	25.6KW	20.1KW	18.2KW	17.2 KW	15.7KW	12KW	11KW
Automatic decoiler	1000KG	800KG	500KG	500KG	500KG	500KG	500KG
machine size (cm)	420x152×160	420x152x160	380x152x160	300x170x140	250x120x140	250x100x140	250x100x140
machine weight	4500.0(kg)	4200.0(kg)	3800.0(kg)	2300.0(kg)	2000(kg)	1600(kg)	1500(kg)

---
