Precision Vertical Drilling Machine 4 Axis CNC Deep Hole Gun Drilling Machine

Product Description

Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

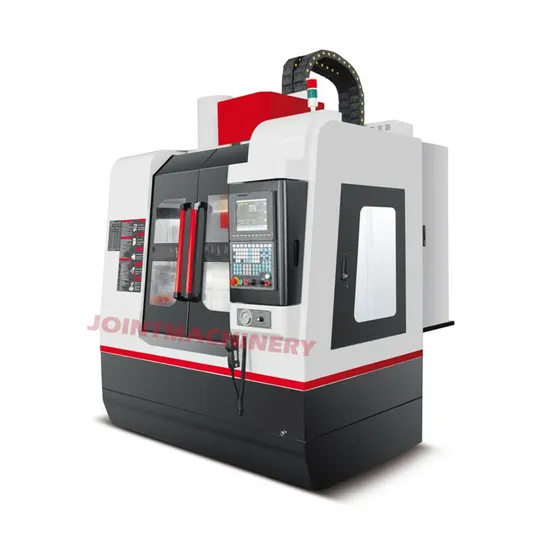

4-Axis Vertical CNC Deep Hole Drilling Machine It is an new style vertical deep hole dill equipped with special short gun drill to work on small hole process and especially for inject pinhole batch process.Which is high precision,high speed,easy operation and save the manpower ,itis widely used for medical equipment,spacefight and hydraulic oil pump and auto spare parts,etc.
Precision Vertical Drilling Machine 4 Axis CNC Deep Hole Gun Drilling Machine

Model	Unit	VMD-650
Inner diameter of drilling	mm	1.5-20
Max drilling depth	mm	220
Table size	mm	700*520
X/Y/Z axis travel	mm	600*500*300
Z2 axis travel	mm	300
Drilling cutting speed	m/min	1-300
Spindle taper		BT40
Max spindle rotary speed	rpm	10000
Spindle motor power	kw	7.5-11
X/Y/Z axis motor	kw	2.4/3.1/3.9
Z2 axis motor	kw	3.9
Load weight	kgs	500
Machine weight	kgs	4500
Machine dimension	mm	2800*2880*2600

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
