Product Details
Product Description
Product Description

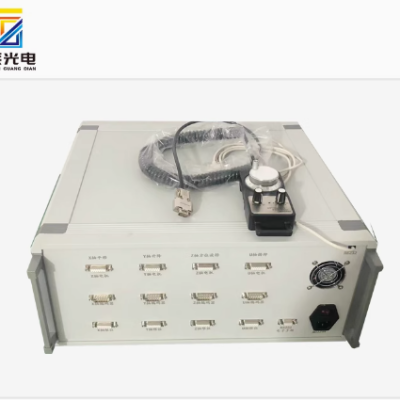

1、 Product Introduction
This controller is compatible with the Windows XP/7/10 32/64bit operating system
32/64 bit high-speed performance processor;
3/6-axis independent or linked control function;
High speed pulse output (100KHZ);
12 switch inputs (6 low-speed, 6 high-speed);
8 high-power outputs;
485 communication interface, 232 communication interface, USB communication interface;
Two analog inputs;
Can be connected to external human-machine interfaces such as touch screens or text displays;
Optimized acceleration and deceleration curves (the motor can reach over 3000 revolutions per minute);
Multi channel assembly line operation, achieving multiple control effects through single control.
Can add a touch screen for offline operation and customize control programs.
2、 Usage method
1. Connect the controller to the power supply and wire it to the corresponding motor.
2. Connect the controller interface to the serial port of the electronic device (it is recommended to use a desktop computer or a laptop with a serial port). If using USB control, connect the USB adapter cable, plug in the electronic device, and insert the driver program into the matching USB drive. Windows and above systems will automatically install, and once installed, the corresponding ports can be viewed in the task manager.
If the system needs to install system patches, you can directly contact our relevant personnel.
Enter the program interface: Select the corresponding serial port. If you are directly using an electronic Nao serial port, select COM1. If using a USB adapter cable, after installing the USB driver, select the appropriate interface based on the corresponding serial port.
>>
