The IDPass is a full-page passport reader with best in class OCR algorithm to extract necessary information from the entire data page which makes the device ideal for high volume applications where speed and efficiency is critical. The IDPass supports auto-sensing trigger that can be easily operated with a rapid image capture of less than one second with confidence. Ideally capture internal data with e-Passports, Visas and other travel documents, the IDPass will be your logical choice of many applications. Contact us for more information.

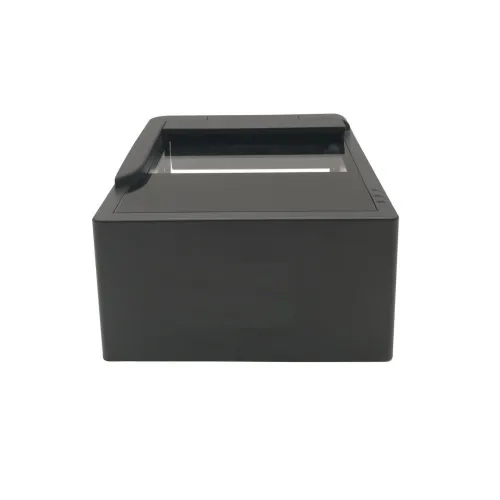

PRODUCT PHOTOS
| Type of Sensor | 4 Megapixel sensor |
| Capture Area | 125mm x 92mm |
| Resolution | 400 dpi |
| Status Indicators | Blue-ready, Green- valid read, Red-read error |
| Image Format | PNG, BMP, JPEG |
| Reading Capability | ICAO 9303 specification, MRZ, 1D/2D barcodes |
| Contact Smart Card | ISO 7816 Class A and AB option |
| Illumination | Visible 430-700nm, IR 860nm, UltraViolet 365nm |
| ePassport RFID | ISO 14443 Type A/B, ICAO 9303 LDS 1.7 & 1.8 |
| Dimensions | 196mm (L) x 170mm(W) x 126mm(H) |
| Weight | 920g |
| Ingress Protection | IP64 rating |
| Interface | USB 2.0 high speed |
| Power Supply | 100-240V AC, auto-adjusting, 50-60Hz |
| Operating Systems | Windows, Android |
| Software & SDKs | Scan demo & essential APIs, Java, C#.NET, WebServer |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 10% to 90%, non-condensing |
