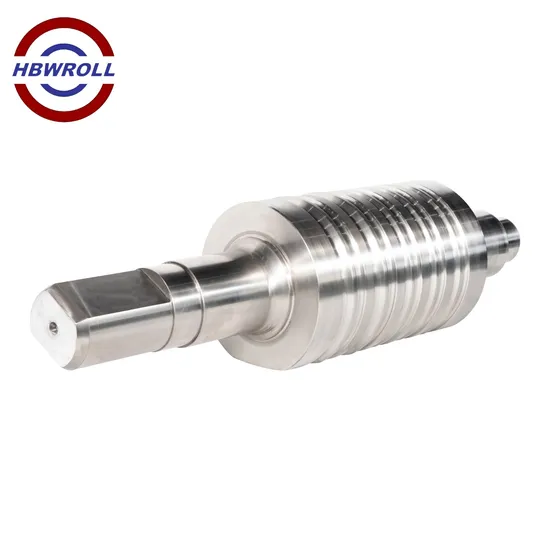

Hot Strip and Plate Steel Working Rolls Customized Chinese Super High-Speed Steel Rolling Mill

Product Description

	Normal	Enchanced	High Strength	Slitting	Dogbone
Roll Specification	Ø280 - Ø850 mm
Density	7.6 g/cm³	7.8 g/cm³	8 g/cm³	7.6 g/cm³	7.6 g/cm³
Casting	Centrifugal Casting
Heat Treatment	HBW Patented
Hardness	General: 82-89HSD Different range based on stands			73-77HSD	79-83HSD
Hardness Drop	≤3HSD
Rolling Temperature	780ºC-1100ºC
Pass Life	4-5 times than CI Rolls	1.3 tims than HSS Normal	1.5 tims than HSS Normal	24-32 hours Continue Rolling (2-3 times than High-boron Rolls)
Dressing	1.0-1.5mm
Use Periods	8-10 Cycles
Application	Intermediate and Finishing stands in bar mill			Slitting stand in bar mill	Dogbone stand in bar mill
	Fours stands before pre-finishing stands in wire mil
	Hot strip and plate steel working rolls
	Section steel universal mill

Material

HBW Patented Chemical Composition (%)

C

Si

Mn

Cr

Ni

Mo

V

W

P & S

Nb

Co

Others

HSS in general

1.5-2.10

0.30-0.7

0.30~0.70

3.00~ 6.00

0.50~ 1.50

3.0-7.0

2.0-8.0

1.0-8.0

≤0.03

Depends on HSS Grade

Unique Features:
* High V, W, Cr, Mo, Nb and other alloy elements.Carbide types: MC and M2C with high hardness and good abrasion resistance.
* Excellent thermal stability, high hardness and good wear resistance.
* High expansion coefficient and good thermal conductivity, more conducive to control
* Forming oxide film during rolling process, improving roll wear resistance significantly
* Super high strength of the roll core (DCI)

Properties	Barrel		Core
Tensile Strength	≥700MPa		≥450MPa
Compressive Strength	≥2500MPa		--

Product description
High-performance HSS Roll has high wear resistance and harden ability, especially the red hardness at high temperature, which makes high-performance high-speed steel more suitable for manufacturing rolls and roll rings.
Therefore, high-speed steel rolls are not only suitable for wire and bar mills, but also for plate and strip mills, and have achieved remarkable results.
Superior quality of roll not only to improve the rolling quality, but also help the plant reduce carbon emissions. Company Profile
Packaging & Shipping
Business partner
Certifications
Quality control
Apllication
FAQ
Q: What products you can offer? A: Our main products are High Speed Steel (HSS) Mill Rolls and Rings. Our HSS Roll is use for Hot Rolling Mill of Bar Steel Strip Steel Angle-Section Steel H-Section Steel, etc.Our HSS Rings is for KOCKS/ PSM / DSD / Seamless Steel Tube /Cantilever and Section Steel Mill.
Q: What is the MOQ of your products?
A: No MOQ.
Q: Can you supply according to our requirement?
A: Yes, we can provide the products according your requirement, such as drawings. hardneess drop Steel Pass Capacity etc.. We also have technical team which can provide technical service
Q: Can you put my logo or website on products?
A: Yes, we can lettering your part number, logo, website or batch number on products according to your request.
Q: How do you control the quality of products?
A: Design products with Professional and suitable Aolly Composition→Experienced Casting & Heating Treatment,Strictly Inspection according to the drawings with Chemical Analysis / Multiple Ultransonic Flaw Detection /Metallography /Dye Penetrate Inspection /Hardness and Dimension testing for each product.
Q: Do you have warehouse or stocks in other countries?
A: No at this moment.
Don't see what you need? Our experienced team of engineers can design it for you. Contact our HBW Engineers for further assistance.

---
