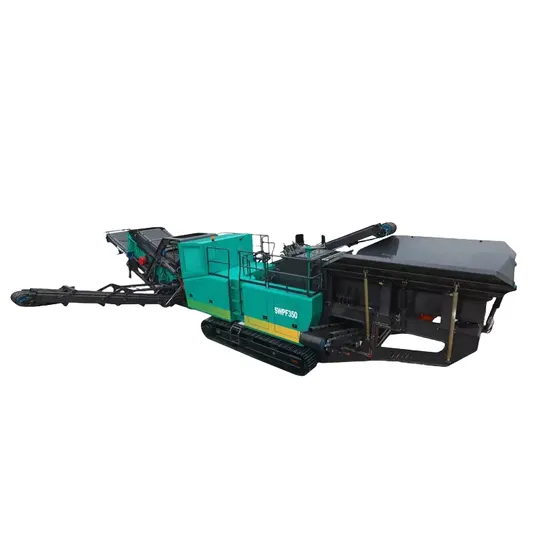

120-350t/H Electric Impact Crusher Crushing Plant Sp1213ie with Heavy-Duty Rotor Cone Crusher

Product Description

120-350t/h Productivity Crawler Impact Electric Crushing Crusher Plant SP1213IE Product Description Finished Conveyor
Material scraper and high pressure water sprinkling system as standard configuration, foldable design, easy to transport.
Magnetic Separator
Hanging type magnetic separator with adjustable working clearance
Power Unit
Standard Yu-chai engine(optional Cum-mins engine). Dust-proof design, stable performance and strong power.
Impact Crusher
The heavy-duty rotor with large kinetic energy is installed, and two chambers design is equipped with two long and two short blow bars. Good crushing particle shape and large crushing ratio.
Screening Machine
Dimension 4500*1500mm. Equipped with the ROSTA shock absorber imported from Switzerland Shock insulation coefficient reaches 98%, and high efficient screen meshis installed.
Integrated Variable Frequency System
Integrated design, classic and practical. One-key start /stop, self-diagnosis. Safety interlocking, automatic alarms. Four protective measures to ensure safe production. National patent certificate obtained.
Crawler Chassis
Hydraulic direct driven chassis with excellent toughness and abrasion performance. Crawler and chassis flexibly connected, ensuring stable travelling for multiple working conditions.
Feeder
Intelligent frequency conversion vibration feeder brings out the full capacity of production all the time. Meanwhile, primary screening device is installed to remove mud and sands on materials, avoiding the screen clogged.
Product Parameters

Item	Description	Parameter
Overall Unit	Total Working Power	318KW
	Total Weight	57t
	Drive Mode	Electic
	Processing Capacity	120-350t/h
	Working Dimension(LxWxH)	18800*8500*4300mm
	Transportation Dimension(LxWxH)	19000*4260*3800mm
Feeding Equipment	Feeding Height	3700mm
	Hopper capacity	6 m³
	Max. Feeding Size	600mm
Vibrating Feeder	Feeder Size(L*W)	4000*1250mm
Crusher	Inlet OpeninSize(LxW)	1330*782mm
	C.S.S.Range	15-200mm
	Crusher Weight	15.4t
Main Conveyor	Discharge Height	3280mm
	Width	1200mm
Vibrating Screen Box	Num ber ofdeck(s)	2
	Screen Size	4500*1500mm
Magnetic Separator	Discharge Height	3950mm
	Width	500mm
Product Conveyor 1(Side),2(Front)	Discharge Height	2855 (3430)mm
	Width	650(1000)mm
Travel System	Travel Control Mode	Hydraulic
	Max. Climbing Angle	20°
Magnetic Separator	Configuration	Permanent Magnet
Other Configurations	Sprinkling System
	Centralized Lubrication System
	Intelligent Control System
	Lighting System
	Remote Control System
	Integrated frequency converter

Product Advantages *Multiple configurations are provided for different requirements, able to produce materials of two or three standards, or mixed materials.
*Heavy-duty rotor with large kinetc energy, high crushing ratio, large output and good particle shape.
*Integrated variable frequency system has multiple functions, including dust-proof, cooling, shock isolation and water-proof, ensuring the safe of electrical system in all aspects.
*Optional belt scale, monitoring the output in realtime.
*Professional ergonomics design ensures safety at work. Detailed Photos
