High Quality Universal Swivel Head Milling Machine X5750

Product Description

Product Description

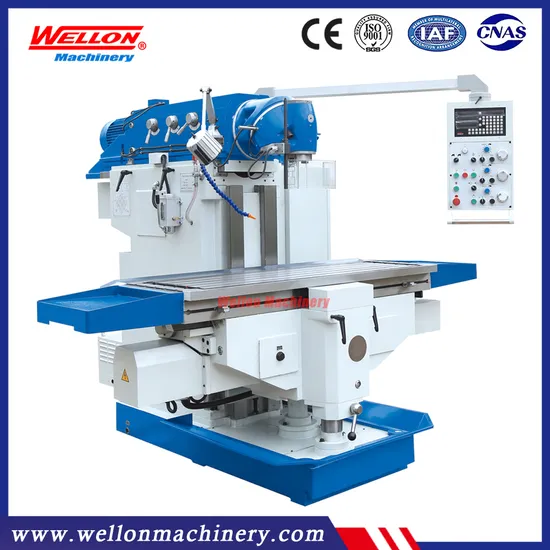

Universal Swivel Head Milling Machine X5750
Detailed Photos
Product Parameters

Feature :
A,Table 3 axes with ball screws, high precision.
B,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate.
C,Mechanical change speeds in head stock, powerful milling.
D,Table with an extra supporting column, big load, high accuracy.
E,It can mill any angle surface through front half-sphere by swiveling milling head.
F,Optional can be install CNC Controller: such as Siemens808D, Siemens828D.
Technical parameter:

Specifications	Unit	X5750
Table size	mm	500*1600
T-slots(NO./width/pitch)	mm	5/18/80
Table travel (X/Y/Z)	mm	1200*700*500
Swivel angle of milling head		360
Spindle taper		ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45-745
Main motor power	KW	7.5
Feed motor	NM	AC servo motor X/Y:15NM; Z: 18NM
Max load	KG	1800
Overall size	mm	2625*2460*2080
weight	KG	5000

Standard accessories:

Electronic hand wheels	Spindle brake
Draw bar	Ball screws in all axis
Coolant device	Automatic central lubrication
Coolant tray	Mill arbors
LED machine light	Tools
Universal mill head

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on. 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price
and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you.

---
