3 Stage 4.5m Full Free Mast Cascade Side Shifter 2.5t Diesel Forklift

Product Description

Product Description

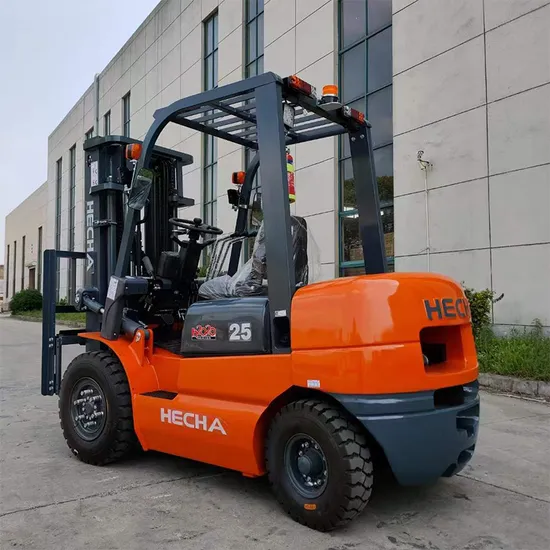

High-Performance 2.5 Ton Internal Combustion Forklift 2.5T Diesel Forklift
√ A perfect combination of power and capacity.
√ Consistent, robust, and reliable in the most challenging conditions.
√ Able to carry loads ranging from 1.6 to 5 tons, while ensuring rapid turnaround and the utmost efficiency in your warehouse or production facility.
√ Offer both powerful performance and genuine cost-effectiveness.
√ Extremely maneuverable and transport goods reliably, both indoors and outdoors.

Detailed Photos
New Compact Mast: Greatly improves the visibility, providing the driver with excellent views of the load and the operating environment
Powerful Engines: helps guarantee excellent driving dynamics with low emissions
4-inch Display: Menu is available to be extended, a readable error indication
Ergonomic Design: Operator and machine working as one. The operator is able to operate all control elements with minimum effort and utmost precision
Product Parameters

1.1	Model Name	Metric	FD25
1.2	Power Source		Diesel
1.3	Rated Capacity	kg	2500
1.4	Load Center	mm	500
	Dimensions
2.1	Mast Extended Height (with Brackrest)	mm	4275
2.2	Lifting Height	mm	3000
2.3	Mast Height, Lowered	mm	2080
2.4	Free Lift Height	mm	145
2.5	Backrest Height (Calculated from the Fork Surface)	mm	1225
2.6	Distance from the Surface of the Seat to the Overhead Guard	mm	1035
2.7	Overhead Guard Height	mm	2106
2.8	Overall Length (without Forks)	mm	2690
2.9	Overall Length (with Forks)	mm	3760
2.10	Fork Overhang	mm	465
2.11	Wheel Base	mm	1700
2.12	Real Overhang	mm	525
2.13	Min. Ground clearance (from Bottom of Mast)	mm	145
2.14	Overall Width	mm	1225
2.15	Lateral Fork Adjustment (Outside of Fork)(max./min.)	mm	1091/250
2.16	Front Tread	mm	1000
2.17	Rear Tread	mm	970
2.18	Min. Turning Radius(Outside)	mm	2420
2.19	Tilt of Mast Forward (deg) / Backward (deg) α / β	°	6/12
2.20	Fork size	mm	1070*125*45

Company Profile
Since 2006, we have been devoted to researching and producing the all-around counterbalance forklifts, to help you raise your intralogistics to a new level and meet your toughest challenges.
Our products offer powerful performance and high cost-effectiveness at the same time. With the maneuverable and ergonomic design, our forklifts are able to transport your goods with the utmost reliability, no matter for indoors or outdoors.
We have a comprehensive range of products, including diesel forklifts, electric forklifts, LPG & Gas forklifts, various hand pallet trucks, and stackers.
HECHA Assembly LINE
Standard Parts are produced by standard mold, which makes the quality and appearance totally the same on different forklifts and shipments. These parts include the counter-balance weight, the chassis, the overhead guard, the engine cover, the seat and etc.

Finished Forklifts Debugging
After the production is finished, there is a procedure to debug the forklifts and check every system. After the debugging, we will make an adjustment to the forklift, to ensure all the forklifts' quality and performance stay at the same level.
Become Our Dealer Join us to become our dealer, be ready to serve your clients when they need you, and focus on providing them with proven products and services. Let's Do Some Brilliant Things Together.

---
