Free Sample Communication Cat5e CAT6 CAT6A Cat5 Cat5a Network Cable

Product Description

Free Sample Communication Cat5e CAT6 CAT6A Cat5 Cat5a Network Cable

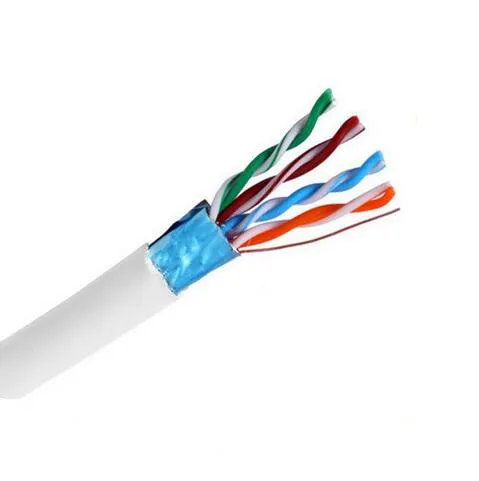

Cat6 Bulk STP/FTP Ethernet Cable 23AWG Bare Copper 550MHz 1000 Feet Blue
Connects between Ethernet and network deviceCCA - Copper Clad AluminumCan be used to make smaller Cat6 cablesComes in an easy pull boxMeets or exceeds Cat6 specifications4 pair solid twisted Wires23AWGLength: 1000ft (305m)550Mhz speedFoot-marked cableColor: Black
Cable Construction

Construction	Conductor Dimension	Core Dimension	No. of Pair	Shielding	Nom O.D.
UTP	0.57	1.02	4	-	6.0
FTP	0.57	1.00	4	Al foil	6.3
S-FTP	0.57	1.00	4	Al foil+Cu braiding	6.6

Conductor: 26AWG Solid BC (the exact sizes are all according to you request)
Insulation: Solid polyolefin
Cabling: 4 twisted pairs cabled around a cross shaped central filler into the cable core.
Shielding: Aluminum Mylar Spirally Wrapped(FTP)
Braiding: TC/Aluminum Magnesium alloy Solid(SFTP)
Jacket: PVC/FR-PVC/LSOH

Production Standard
ISO/IEC 11801:2002(Categoy5e)
IEC 61156-5:2002(Category5e)
IEC 61156-7:2003
UL CM
UL CMP and CSA FT6
UL CMR and CSA FT4
LSOH: IEC 60332-1, IEC 60332-3
IEC60754-2, IEC 61034

Compliance with
² ISO/IEC 11801
² TIA/EIA-568-8.2
² IEC-60332-1
² UL 444 (CM/CMR/CMP grade)
² RoHS

Application
100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM

Product Describtion
Rated temperature 60°C, 75°C
Reference standard UL444, TIA/EIA 568B
Bare solid or stranded copper conductor
Colour-coded PE insulaation
Rip cord (optional)
Lead free PVC or LSOH jacket
Reelex Pull-out Box Packing
Factory photos and production process Our Service: 1) Quick Response --All inquiries will be replied within 24 hours. 2) Professional Quotation --All prices will be quote according to customers' detailed specifications & requirements. 3) OEM & ODM Service 4) Can print your own brand on the jacket printing with foot or meter marking. 5) Make customized designs for stickers, drums, outer cartons, etc. 6) Stable Quality --All materials and products passed restrict QC procedures,comply with international standards. 7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after Confirmation in usual. Good After-sales Service --We chose the fastest vessel to POD for delivery our goods to clients, --All Documents will be issued according to clients' instructions, to save troubles from local customs. --Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients. FAQ: Q1: What kind of cable do you produce? A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc Q2: What's your MOQ? Can you offer free samples? A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side. Q3: What's your delivery time? A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order. Q4: What's your payment term? A: We accept T/T, L/C,Western Union.Other payments accept through negotiation. Q5:What's your trade term? A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term Q6: Where is your factory located? How can I visit there? A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China. 1 hour drive from HangZhou XiaoShan International Airport 3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

---
