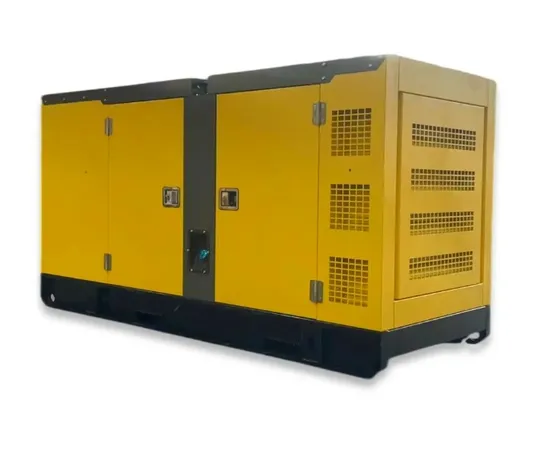

Yuchai 100kw Generator Set Yc4a190-D30 Overload Capable

Product Description

Product Description
Yuchai is the largest independent engine manufacturer in China, with annual sales revenue over RMB 20 billion and annual production capacity of engine is over 600,000 units. Yuchai has three R&D centers in Nanning, Yulin, and Europe , and holds more than 3600 authorized patents. The total number of authorized patents has ranked first for 13 consecutive years in Guangxi. Yuchai has won the national science and technology award for 6 times. The products cover 14 platforms, 49 series and over 2000 varieties, which are widely apply to trucks, coaches, engineering machinery, agricultural equipment, marine & G-drive engines, special vehicle and light vehicle. The production and marketing volume of engines has ranked the top for consecutive years in industry, and the products have been sold to more than 180 countries and regions in Asia, Europe, America, Africa and Oceania.Product Parameters

100KW-50HZ-400V
Generator set parameters
Model	YC-E125GF1
Ratedpower	100 kw
Rated speed	1500r/min
Rated Voltage	400V
Rated cument	180.4A
Frequency	50HZ
PF	0.8(log)
Generator efficiency	95.90%
Fuel consumption rate under full load	≤192gkwh
Noise	≤80Lp dB(A)
Starting method	Electric start
Weight	1750 kg
Engine parameters
Mode1	YC4A180L-D20
Rated power	120kW
Rated speed	1500r/min
Cylinders	6/L
Type	Four stroke and turbocharging
Bore× stroke(mm)	108mm × 132mm
Displacement(L)	4.837L
Compression ratio	17.5:1
Control system	Yuchai Power
Generator parameters
Model	KAL274C2
Connection	3 and Y shape
Protection level	IP23
Insulation level	H
Excitation type	Brushless excitation
Generating-set performance
Voltage adjusting range	95-105%
Steady State Voltage Regulation	±1%
Transient voltage deviation(100% load sudden reduce)	≤+20%
Transient voltage deviation(load impact)	≤-15%
Voltage stabilization time(100% load sudden reduce)	≤3s
Voltage stabilization time (load sudden impact)	≤3s
Voltage fluctuation rate	≤±1%
Steady-state frequency regulation	≤±0.5%
Frequency volatility	≤±0.5%
Transient frequency deviation(100% load sudden reduce)	≤+10%
Transient frequency deviation(load sudden impact)	≤-7%
Frequency Recovery Time(100% load sudden reduce)	≤3s
Frequency Recovery Time(load sudden impact)	≤3s

The Supply range
NO.	Item name	Unit	Quantity	NO.	Item name	Unit	Quantity
1		Set	1	5		Piece	2
	Diesel				Battery
2		Set	1	6		Piece	1
	Generator				Exhaust systems
3		Set	1	7		Set	1
	Radiator				Oil water separator
4		Set	1	8		Set	1
	Control panel				Base

Certifications
Cooperation Cases
FAQ
Q: What is the price?
A: Our price is determined by various factors, including the model, power, specific configuration of the product, quantity, and pricing terms (FOB, CIF, CPT, FCA, etc.).
Q: What are your payment methods?
A: We accept Telegraphic Transfer (T/T) and Letters of Credit (L/C).
Q: What are your payment terms?
A: Generally, 30% T/T as a deposit, with the remaining 70% paid before delivery.
Q: What is the minimum order quantity (MOQ)?
A: For complete units, the MOQ is 1 unit; for engine parts, the MOQ is 1 piece.
Q: Do you provide samples?
A: Sample orders are accepted. However, due to the high value of engines, free samples are not available.
Q: What are your packaging conditions?
A: Our products are packed in fumigated wooden crates.
Q: What is the production lead time (delivery time)?
A: For engine parts, we usually have sufficient stock. For engines, the lead time is typically around 30 days.
Q: Do you offer other brands?
A: We are a manufacturer and trading company integrated into one, and we only offer Yuchai-branded products. Feel free to inquire, and we will do our best to support our customers.
Q: Do you provide a warranty, and what is the warranty period?
A: Yes, we provide warranty services. The warranty period varies depending on the model, and it can be negotiated based on the specific situation.
Q: How is your after-sales service and maintenance?
A: We provide repair and maintenance services abroad. We can also offer electronic versions of the "Engine Operation and Maintenance Manual," "Parts Catalogue," and "Repair Manual" in both English and Chinese. These cover all exported products and provide reliable technical guidance for service training in the market.

---
